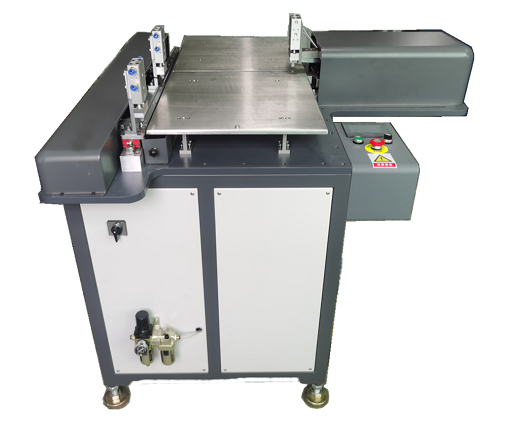

INLAY Sheet Chip Fixation Hole Die Cutting Machine YHP-CNC

INLAY Sheet CNC Hole Punching Machine/ RFID Card INLAY Sheet Chip Hole Die Cutter/ INLAY Sheet Chip Fixation Hole Die Cutting Machine YHP-CNC

The machine is designed  for punching the two positioning holes and the chip fixing holesforRFID Card Inlaysheets in a precise and flexible way.
One-time punching can ensure the relative positionaccuracy of chip fixing holes and positioning holes. Its main advantage is that it can avoid the trouble and time-consuming of repeatedly adjusting the size and position of the punching mouldin the old generation hole puncher.  This equipment does not need to adjust the relative position of the punchingmould, and can punch the holes in different sheet layout, which cangreatly improve the production efficiency. Meanwhileit can punch more sheets (3-5 sheets) one time.
The numbers and relative position of punchedholes can be adjusted by setting touch screen parameters, and multiple groups of working parameters can be saved inside for the convenience tobecalled back and used inthe future production.
RFID card INLAY Sheet CNC Hole Punching Machine is also name as RFID Card INLAY Sheet Chip Hole Die Cutter or INLAY Sheet Chip Fixation(Installation ) Hole Die Cutting Machine YHP-CNC.

Technical Parameters:
1. Power supply: AC220V, 50 / 60Hz;
2.Dimension: 1200 * 1400 * 1300mm;
3.Weight: 220kg;
4. Control mode: Mitsubishi PLC + servo system;
5. Compressed air: 6kg / cm², 30L / min;
6. Material thickness: 0.15 -0.2mm;
7.Power: 1.5kw;
8. Position accuracy: ± 0.05mm;
9. PVC size: ≤ 500mm * 600mm;
10. Speed: 200-300bigsheets/hour;
