Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-16A4S

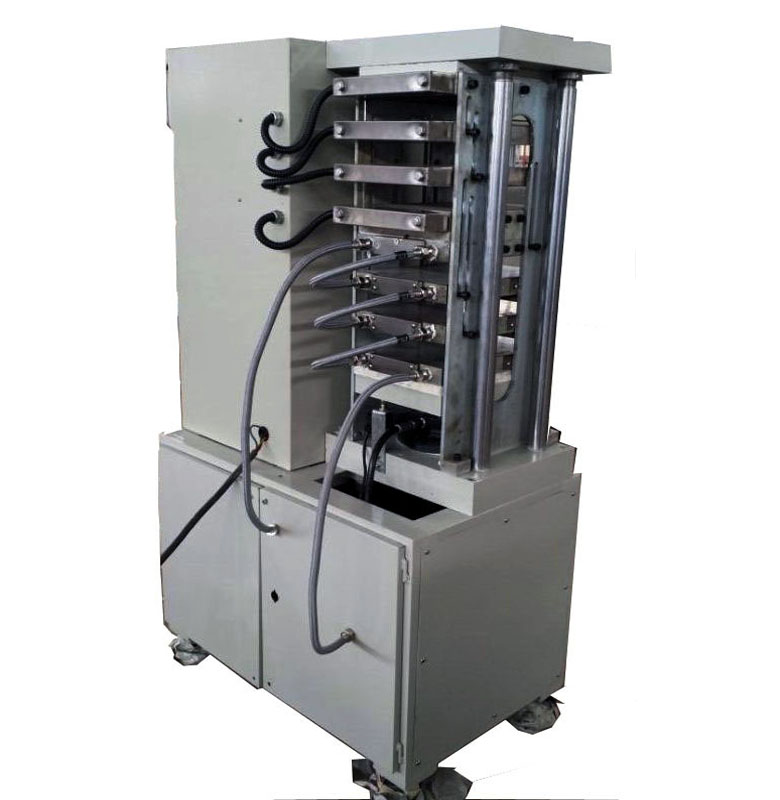

Plastic Card Laminator YLL-16A4S is designed to laminate the bonded PVC sheet assembly into the thicker PVC sheets to be punched. It has one tower with 3 hot openings and 3 cooling openings. It is controlled by PLC which can ensure reliable and precise lamination effect. Plastic Card Laminator YLL-16A4S is also named as Smart Card Pressing Machine or Card Laminating Machine YLL-16A4S.
Feature Description
1. PVC sheet layout: 2×5 for 16A4 model
2. Laminating template size: 230×315mm suitable for A4 PVC sheet lamination
3. Daylight number/distance: 1 tower, 3 hot daylights, 3 cool daylights, 40mm
4. Pressure control precision: +/-1Mpa
5. Work pressure: 0-16Mpa (adjustable).
6. Temperature control precision: +/- 2℃
7. Heating temperature: ≤200 ℃
8. Power: 7.5 KW (Maximum)
9. Power supply: AC380V 50/60HZ 3 phase 4 wires
10. Dimension: around L800×W550×H1200mm
11. Gross weight: Around 500 kg.
12. Speed: 1000 cards per hour.
Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=z-R5y046UUQ&feature=youtu.be
Plastic Card Laminator YLL-16A4S is designed to laminate the bonded PVC sheet assembly into the thicker PVC sheets to be punched. It has one tower with 3 hot openings and 3 cooling openings. It is controlled by PLC which can ensure reliable and precise lamination effect. Plastic Card Laminator YLL-16A4S is also named as Smart Card Pressing Machine or Card Laminating Machine YLL-16A4S.Feature Description
- It is controlled by PLC to ensure reliable performance. It can laminate various cards including RFID cards Inlay.
- It has the best performance/price ratio, which is very suitable for middle or small card factory.
- The big size cooling parallel loop is specially designed to ensure better cooling effect.
1. PVC sheet layout: 2×5 for 16A4 model
2. Laminating template size: 230×315mm suitable for A4 PVC sheet lamination
3. Daylight number/distance: 1 tower, 3 hot daylights, 3 cool daylights, 40mm
4. Pressure control precision: +/-1Mpa
5. Work pressure: 0-16Mpa (adjustable).
6. Temperature control precision: +/- 2℃
7. Heating temperature: ≤200 ℃
8. Power: 7.5 KW (Maximum)
9. Power supply: AC380V 50/60HZ 3 phase 4 wires
10. Dimension: around L800×W550×H1200mm
11. Gross weight: Around 500 kg.
12. Speed: 1000 cards per hour.
Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=z-R5y046UUQ&feature=youtu.be
