Semi-automatic Poker Card Punching Machine YLP-PC-600

Product Technical Specification
Semi-automatic Poker Card Punching Machine/Poker Play Card Puncher/Poker Card Die Cutter/Poker Playing Card Die Cutting Machine YLP-PC-600





The machine is special for Poker playing card punching purpose with exact card sequential sorting design. It adopts touch screen with friendly man-machine interface operation, and high-power servo motor works as punching power. Servo motor driven ball screw is used to feed and punch the plastic sheet. The positioning accuracy is high which can be less than ± 0.10 mm.

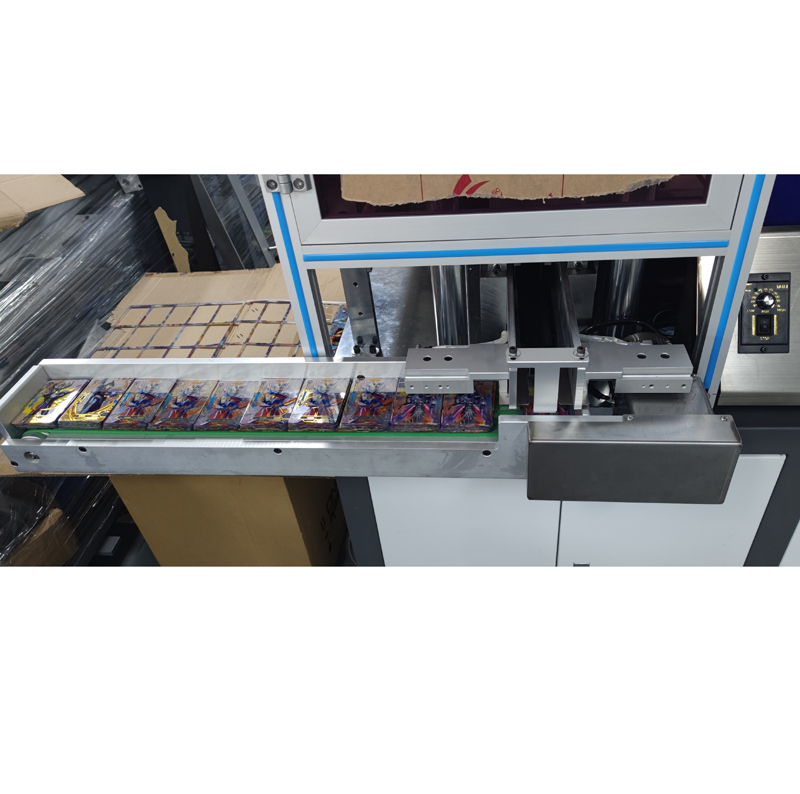

Professional card collection structure design makes it suitable for sequential sorting collection of playing poker cards and plastic cards collected in sequential numbers.

• With the high-quality imported servo-system feeding system, the position parameters of each punching point can be adjusted with high precision.
• The high-quality imported ball screw guide is adopted for step feeding with the feature of with high precision and long service life.
• The high-power servo motor is used as punching power with low noise, stable power and adjustable punching speed. In case of punching cards with different thickness, Its performance is much better.
• It is equipped with automatic search cursor positioning punching mode in order to ensure the high accuracy of punching work.
• The PLC program control can realize automatic operation and can give an timely problem alarm and operation shutdown with the display of solution.
