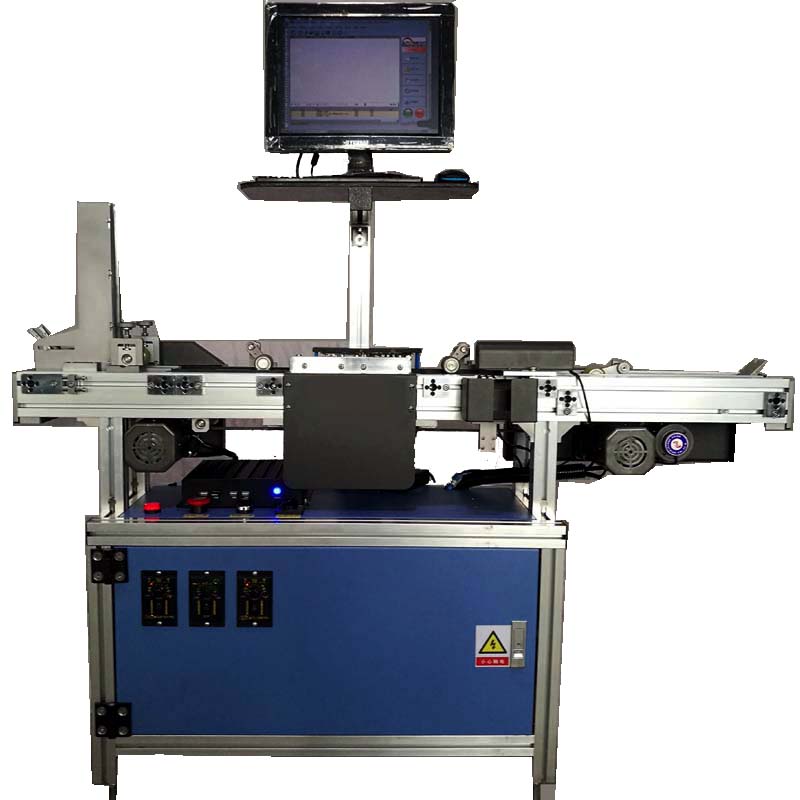

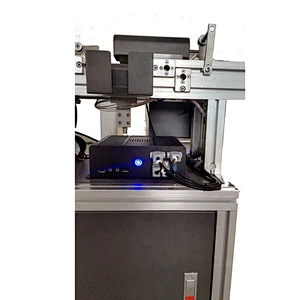

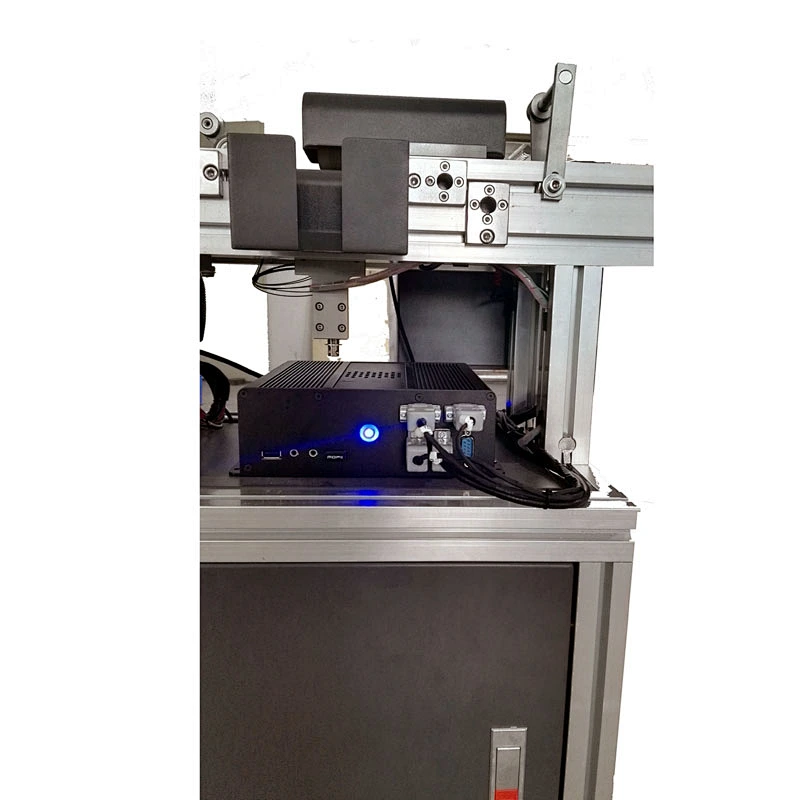

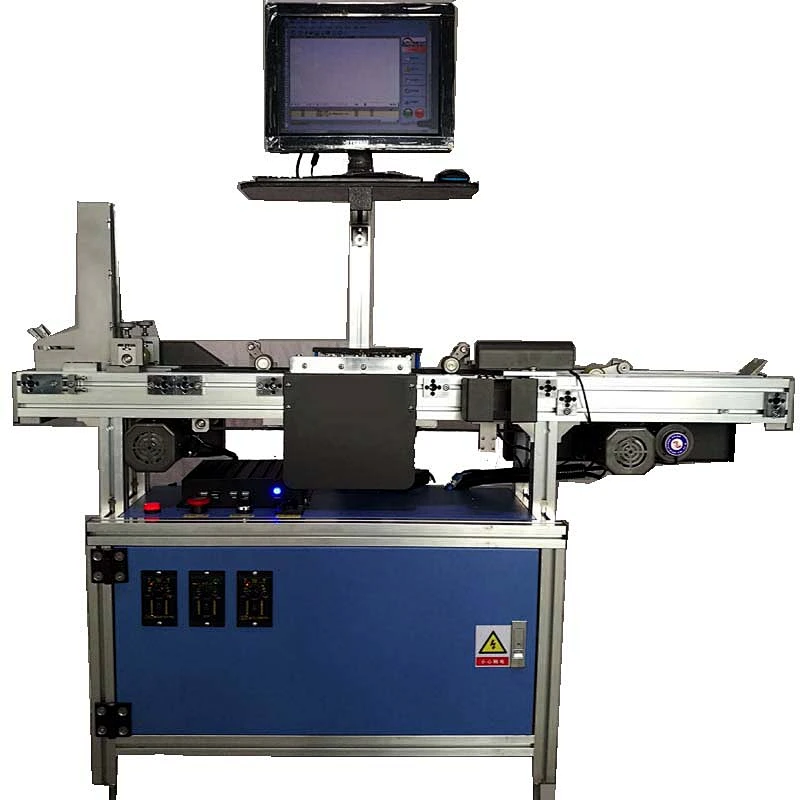

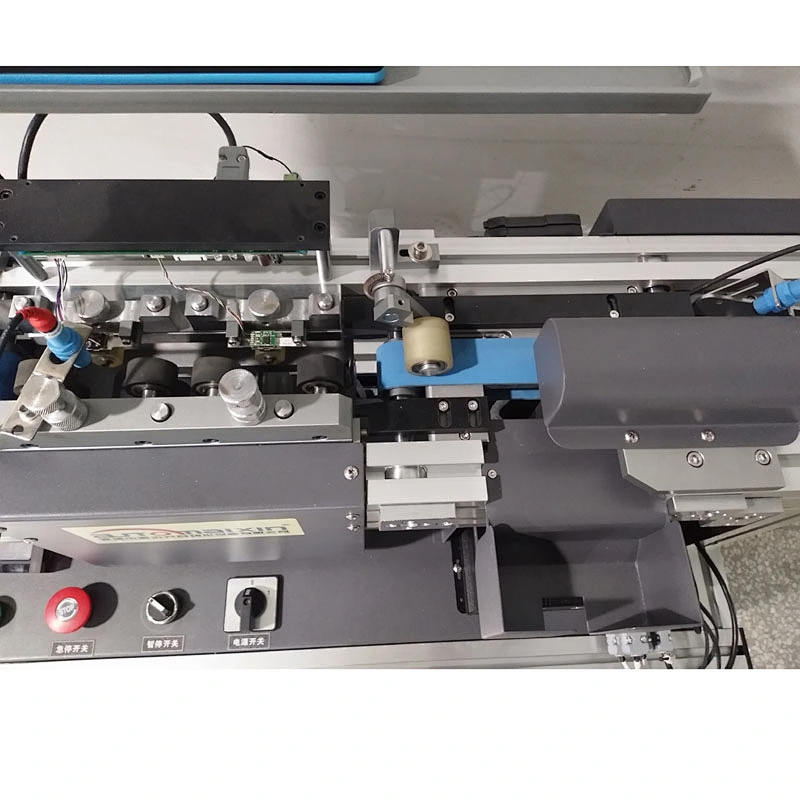

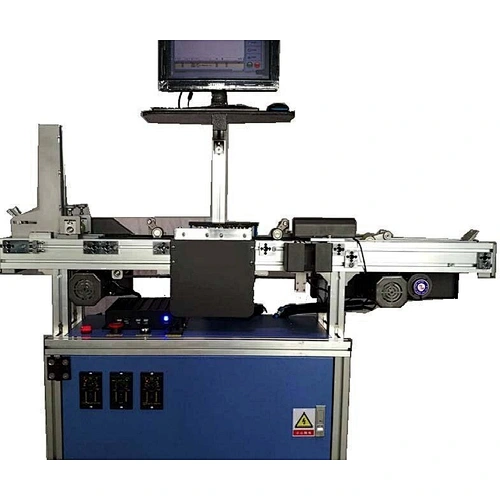

Speedy Magnetic Card Encoder YME-1 is designed to encode the magnetic stripe cards in a speedy and reliable way. It can encode 3 tracks at the same time with the maximum speed of nearly 10000 cards per hour. The magnetic writing unit mechanism is highly optimized to ensure the even speed of encoding and maximize the magnetic writing success rate. The encoder YME-1 is designed to encode almost all type of magnetic card, but it is not designed for encoding financial bank magnetic cards due to the technical limit.
Basic configuration

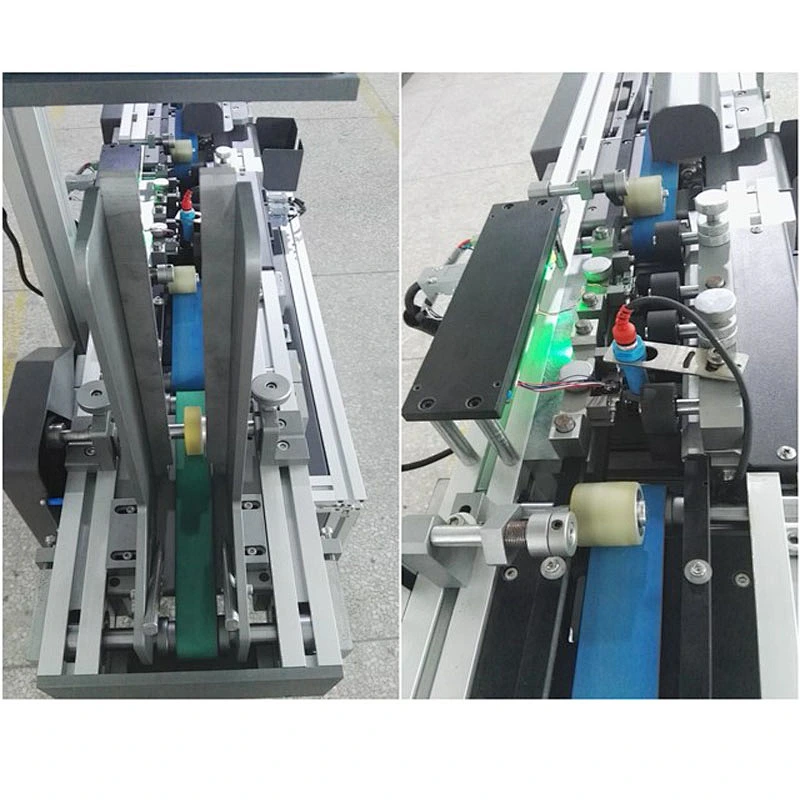

Card feeding magazine-Card writing/reading unit-card rejection box-Good card collection unit
Technical Parameter

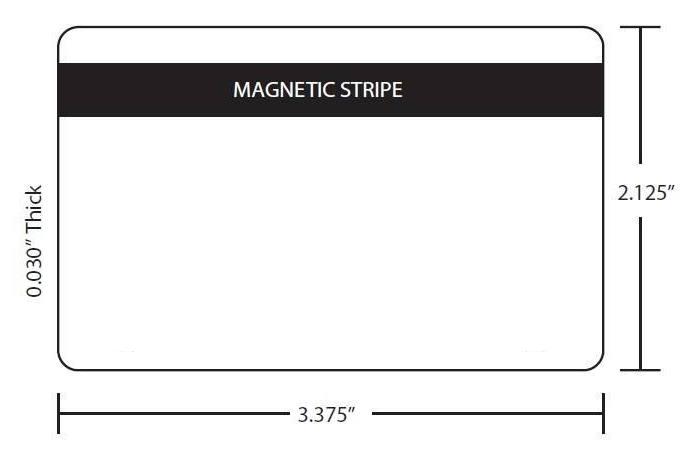

Card length: 85.47mm-85.72mm
Card width: 54.03mm-53.92mm
Card corner radius: 3.18mm
Distance between magnetic stripe upper edge and card upper edge: 5mm
Basic configuration
Card feeding magazine-Card writing/reading unit-card rejection box-Good card collection unit
Technical Parameter
- Speed: 8000-10000 cards/hour
- Operating Program: Reliable AIO control software system for magnetic stripe data encoding.
- Magnetic Record Density: 210 BPI for track 1; 75 or 210 BPI for track 2; and 210 BPI for track3
- Applicable Magnetic tripe: HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide
- Applicable Card type: Standard magnetic stripe card
Card length: 85.47mm-85.72mm
Card width: 54.03mm-53.92mm
Card corner radius: 3.18mm
Distance between magnetic stripe upper edge and card upper edge: 5mm
- Power supply:AC220V, 50/60Hz
- Power :1kW
- Net Weight:113kg
- Machine size: L1400×W400×1300mm
- Package size &weight: 1 plywood case, GW 165KG, L1550×W550×1380mm
- Magnetic writing head service lifetime: 200,000 to 300,000 times
- Magnetic reading head service lifetime: 400,000 to 500,000 times.
Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=dcugD-NAO5I
https://www.youtube.com/watch?v=dcugD-NAO5I
Send Message
Related Products

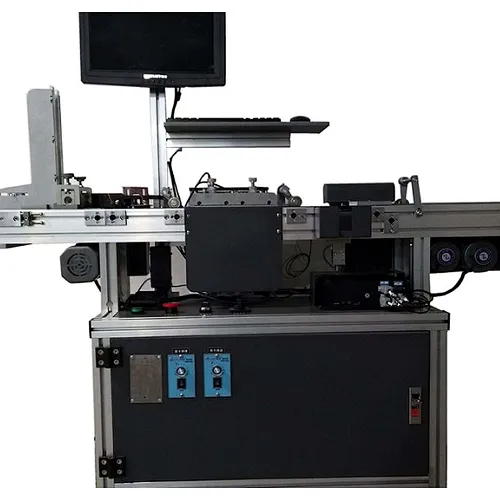

Model NO. YDE-1
