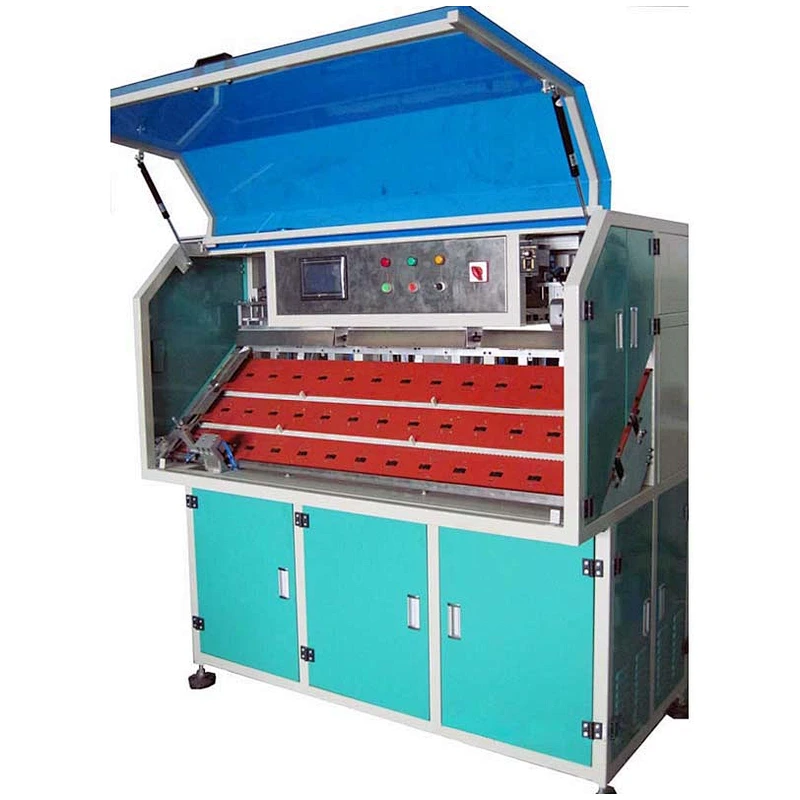

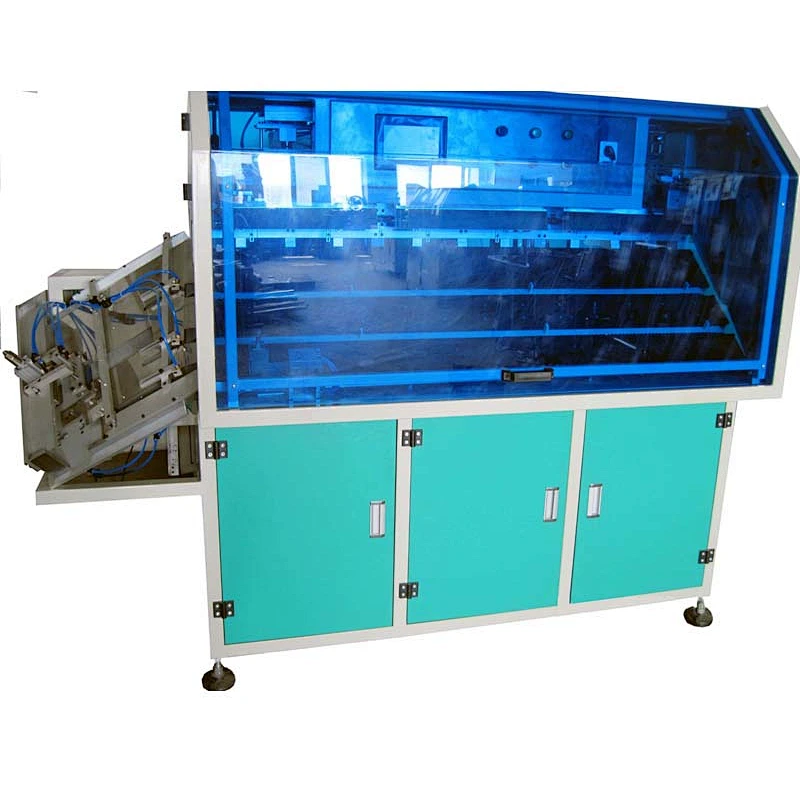

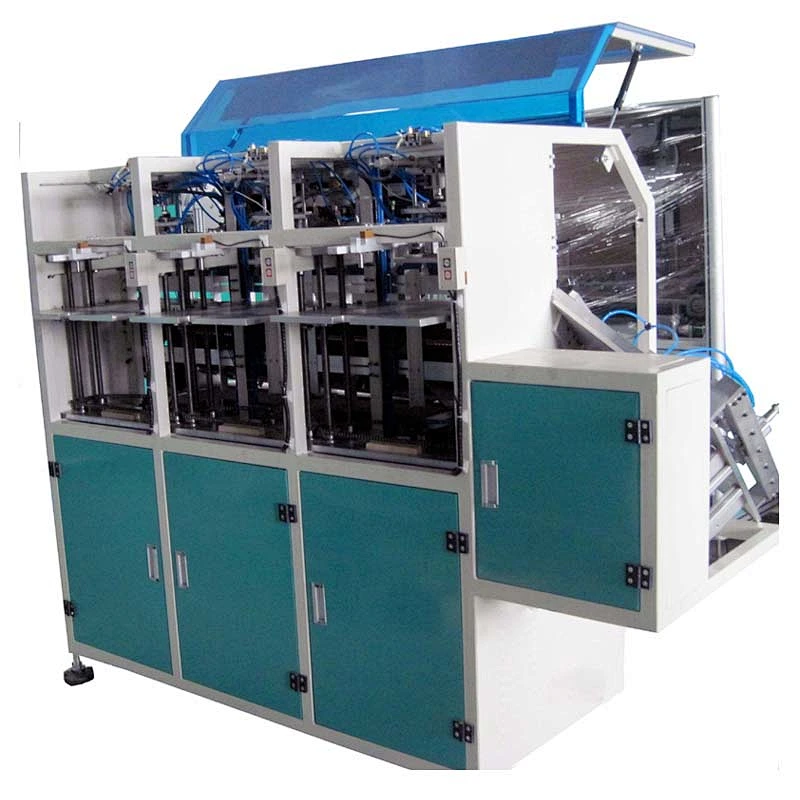

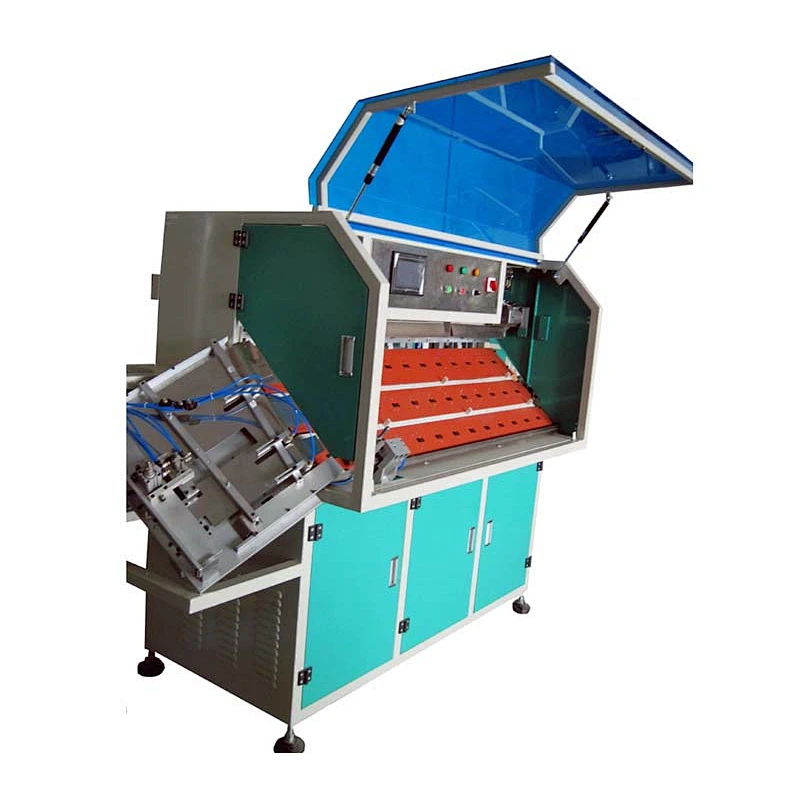

Automatic Sheet Collating and Bonding Machine/Full Auto Card Sheet Collator and Bonder YSCB-1
(Card sheet Bonding machine/ sheet bonder, card sheet collating machine/collator, card machine, smart card machine)
The machine is designed for automatically picking, collating and bonding the sheets (2 printed sheets+1 middle core sheet or only 2 printed sheets), which can greatly improve the plastic card production productivity.
Key Features:
Technical parameter
(Card sheet Bonding machine/ sheet bonder, card sheet collating machine/collator, card machine, smart card machine)
The machine is designed for automatically picking, collating and bonding the sheets (2 printed sheets+1 middle core sheet or only 2 printed sheets), which can greatly improve the plastic card production productivity.
Key Features:
- It applies mature ultrasonic bonding technology to realize perfect bonding quality.
- It is controlled by the PLC program with large LCD display. The servo system can realize automatic transmission of card sheets.
- Parameter setting is easy and convenient. The operation speed is fast with high precision.
- Thickness detection function is available to avoid the same sheets combined in one assembly.
- It can work on the assembly of 2 printed sheets+1 middle core sheet or only 2 printed sheets. The thickness of the applicable card sheet is more than 0.12mm.
- Sheet picking is stable and reliable without scratches on card sheet surface.
- There are no scratches on card sheet surface in the whole conveying process of the machine.
Technical parameter
| Power supply | AC 380V/50 HZ | Control mode | PLC+Servo system |
| Air resource | 6 kg/c㎡(dry) | Dimension | L2150×W950×H1650mm |
| Power | 2.5KW | Operator number | 1 |
| Air consumption | Around 80L/min | Productivity | 2000 sheets/h |
| weight | Approximately 300Kg |
