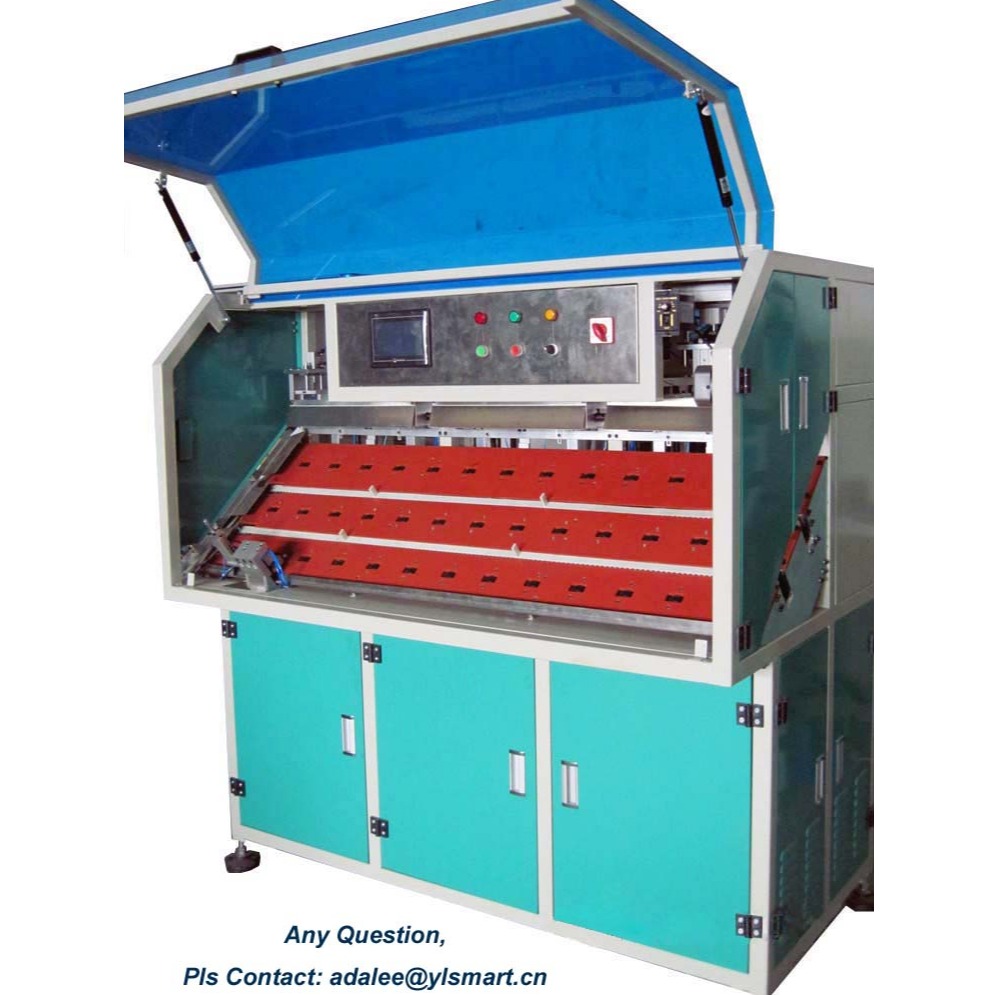

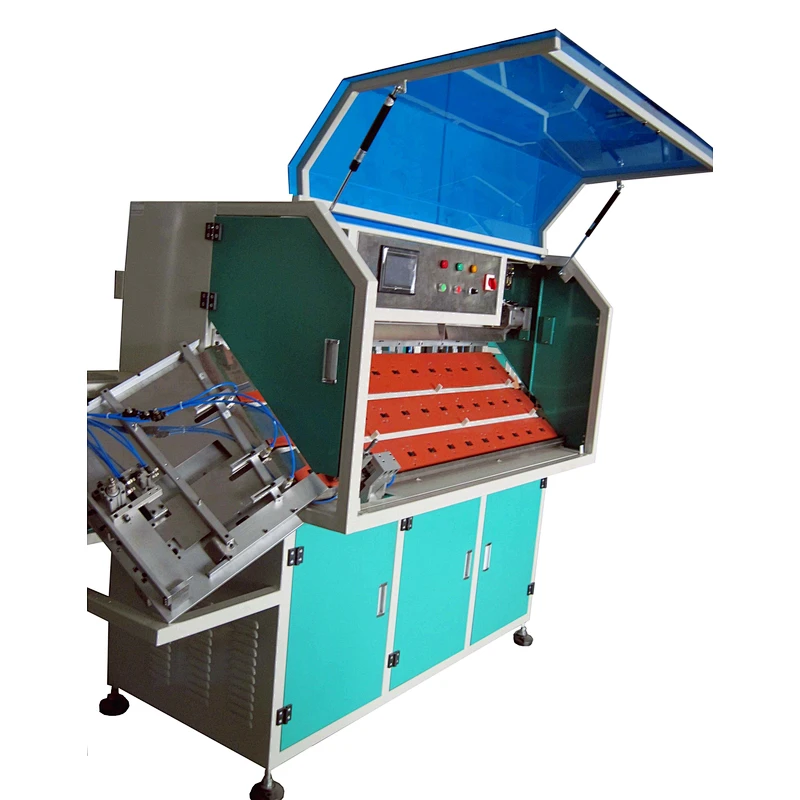

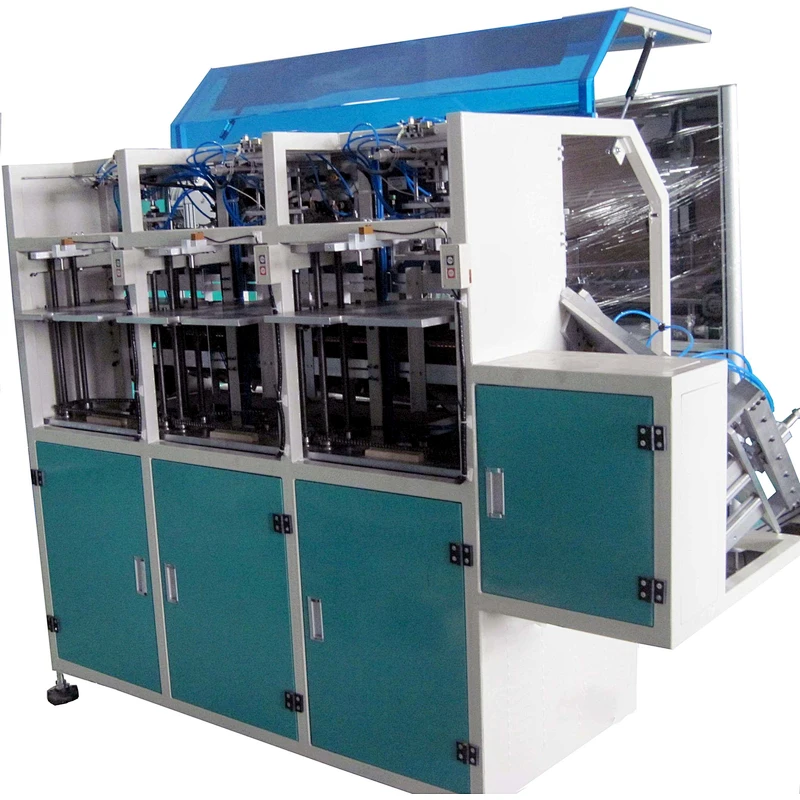

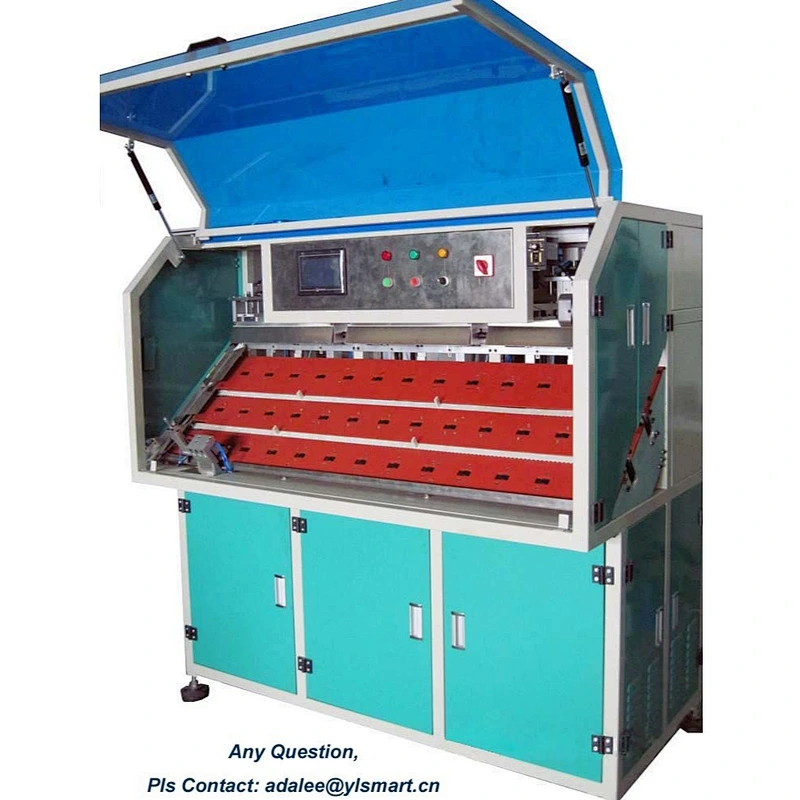

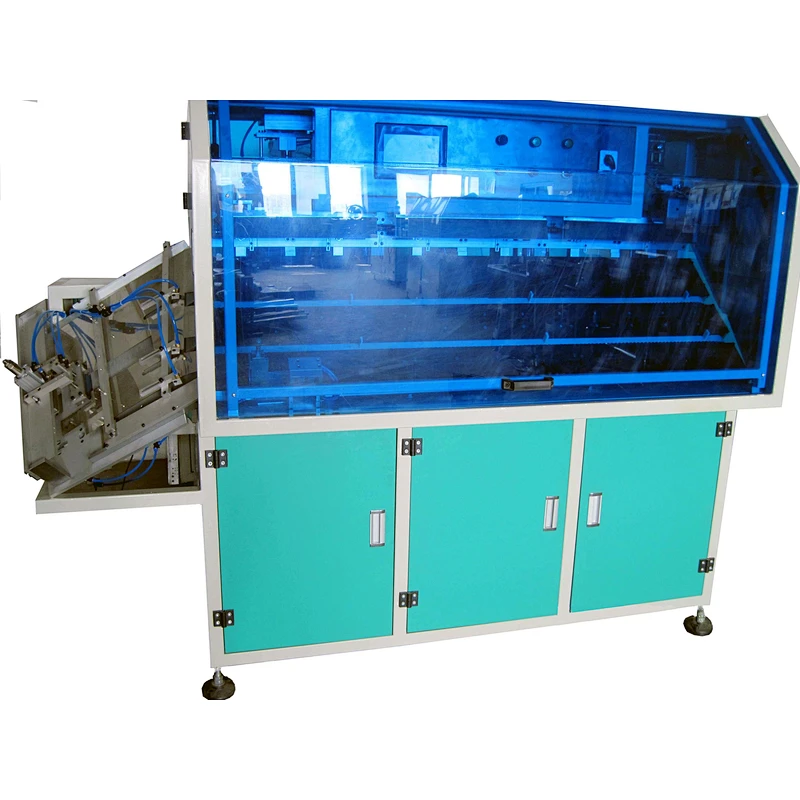

Full Auto Card Sheet Collator and Bonder YSCB-1

Full Auto Card Sheet Collator and Bonder YSCB-1

Model NO.: YSCB_1
Delivery: EXW,FOB,CIF,CFR,FCA
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: 30-45 Days

Quantity:

Product Description
Application Description

Product Technical Specification

Automatic Sheet Collating and Bonding Machine/Full Auto Card Sheet Collator and Bonder YSCB-1
(keyword: Card sheet Bonding machine/ sheet bonder, card sheet collating machine/collator, card machine, smart card machine)

The machine is designed for automatically picking, collating and bonding the sheets (2 printed sheets+1 middle core sheet or only 2 printed sheets), which can greatly improve the plastic card production productivity.

Key Features:

It applies mature ultrasonic bonding technology to realize perfect bonding quality.
It is controlled by the PLC program with large LCD display. The servo system can realize automatic transmission of card sheets.
Parameter setting is easy and convenient. The operation speed is fast with high precision.
Thickness detection function is available to avoid the same sheets combined in one assembly.
It can work on the assembly of 2 printed sheets+1 middle core sheet or only 2 printed sheets. The thickness of the applicable card sheet is more than 0.12mm.
Sheet picking is stable and reliable without scratches on card sheet surface.
There are no scratches on card sheet surface in the whole conveying process of the machine.

Technical parameter

Power supply	AC 380V/50 HZ	Control mode	PLC+Servo system
Air resource	6 kg/c㎡(dry)	Dimension	L2150×W950×H1650mm
Power	2.5KW	Operator number	1
Air consumption	Around 80L/min	Productivity	2000 sheets/h
weight	Approximately 300Kg

The machine is designed for automatically picking, collating and bonding the sheets (2 printed sheets+1 middle core sheet or only 2 printed sheets), which can greatly improve the plastic card production productivity.
Note: Pls watch the machine video by click the YOUTUBE address:https://www.youtube.com/watch?v=EWQJhyp5eaA
