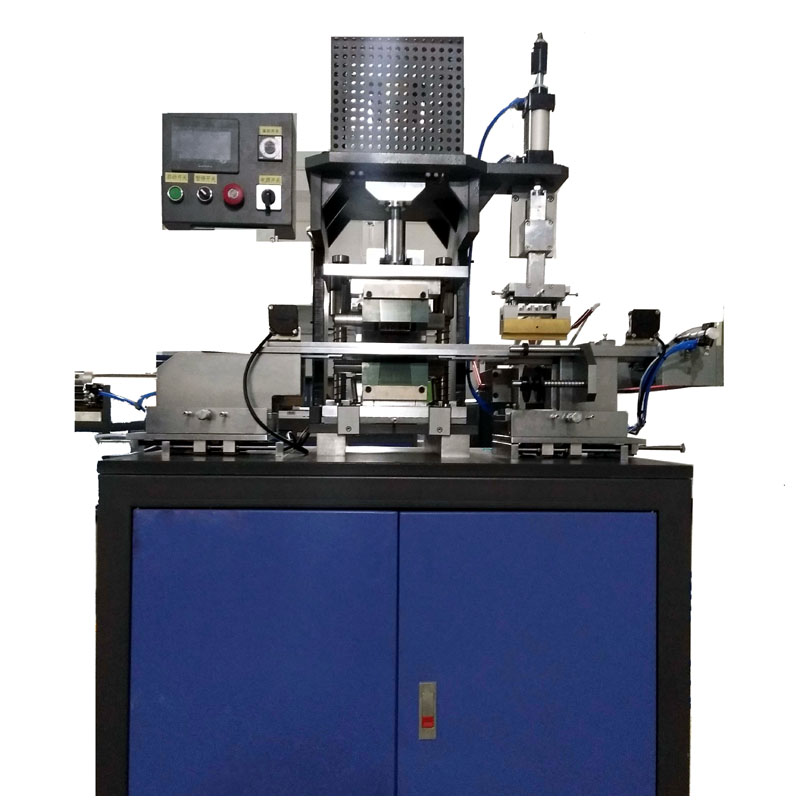

Card Embossing and Bronzing Machine YLE-1

Card Embossing and Bronzing Machine YLE-1

Model NO.: YLE_1
Delivery: EXW.,FOB,CIF...
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: about 30 Day

Quantity:

Product Description
Application Description

Product Technical Specification
Plastic Card Embosser/Card Embossing and Bronzing Machine/Card Embossing and Tipping Machine/Card Numbering Machine YLE-1

Feature Description

The model YLE-1 has one embossing stations with one tipping station, which can emboss and tip the standard plastic card simultaneously in a speedy way. It is one of our best sellers among our products. This machine is designed only for embossing the sequential number (3 fixed words or symbol+ maximum 16numbers). It applies the reliable Japanese servo motor as embossing power to ensure better embossing effect with less maintenance operation.

Itapplies Mitsubishi PLC, touch screen and step-motion system in order to ensure the machine stability; the pneumatic parts applied in this machine are made by SMC to their working durability.
The embossing moulds are made of Japanese special steel material with the service life of tens of millions times. 2 sets of characters in big and small size are available.
The embossed word or symbol can be custom-made as per customer demand.

The Plastic Card Embosser YLE-1 is also named or known as Card Embossing and Bronzing Machine, Card Embossing and Tipping Machine or Card Numbering Machine YLE-1.

Technical Parameters

Speed:over 6000 cards/hr.
Applicable material: 0.6-1.0mm thickplasticCR80 cards.
Pressure of compressed air: ≤5 KG/ cm²
Power supply: AC380V 50/60Hz
Power:2.5kW
Weight:around 400kg
Dimension: L1200×W820×H1600 mm

The model YLE-1 has one embossing stations with one tipping station, which can emboss and tip the standard plastic card simultaneously in a speedy way. It is one of our best sellers among our products. This machine is designed only for embossing the sequential number (3 fixed words or symbol+ maximum 16 numbers). It applies the reliable Japanese servo motor as embossing power to ensure better embossing effect with less maintenance operation.
Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=b2UDkYZlIQU
