Product Technical Specification

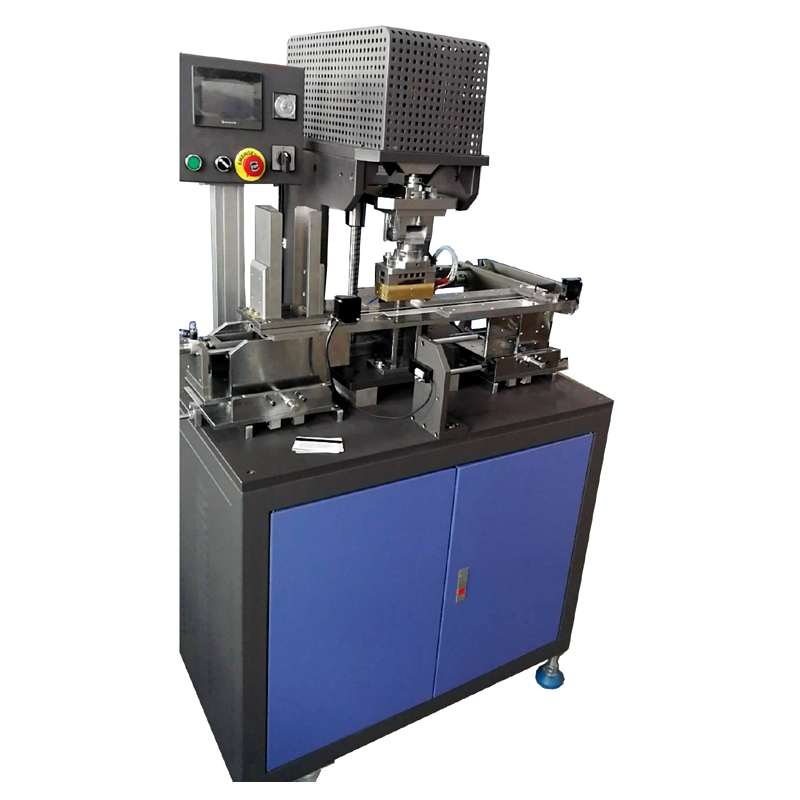

Automatic Card Hot Stamping Machine/ Card Hologram Foil Stamping Machine/Card Signature Panel Stamping Machine YHS-1
This machine is specially designed for hot stamping the anti-fake hologram or signature panel for plastic cards, and it can also stamp the words and patterns with gold or silver foil as well as scratch-off foil stamping on cards surface. It is controlled by PLC with friendly man-machine interface. It features high speed, good stamping quality and precise location.
Feature Description
1. Power supply:AC220V, 50/60 Hz
2.Dimensions (LxWxH):1200×820×1580mm
3.Weight: around 390 kg
4. Control mode: PLC+ stepping system
5. Compressed air: 6 KG/cm2 30L/min
6. Speed: 3000 cards per hour
7. Material: CR80 cards 0.50-0.85 mm thick
8. Power: 2.5KW
9. Position accuracy: ±0.2mm
10. Stamping temperature range: 120-180 centigrade degrees (normally 140-150)
11. Stamping area on card surface: no more than 48mm in card width direction and no more than 80mm in card length direction.
Automatic Card Hot Stamping Machine/ Card Hologram Foil Stamping Machine/Card Signature Panel Stamping Machine YHS-1
This machine is specially designed for hot stamping the anti-fake hologram or signature panel for plastic cards, and it can also stamp the words and patterns with gold or silver foil as well as scratch-off foil stamping on cards surface. It is controlled by PLC with friendly man-machine interface. It features high speed, good stamping quality and precise location.
Feature Description

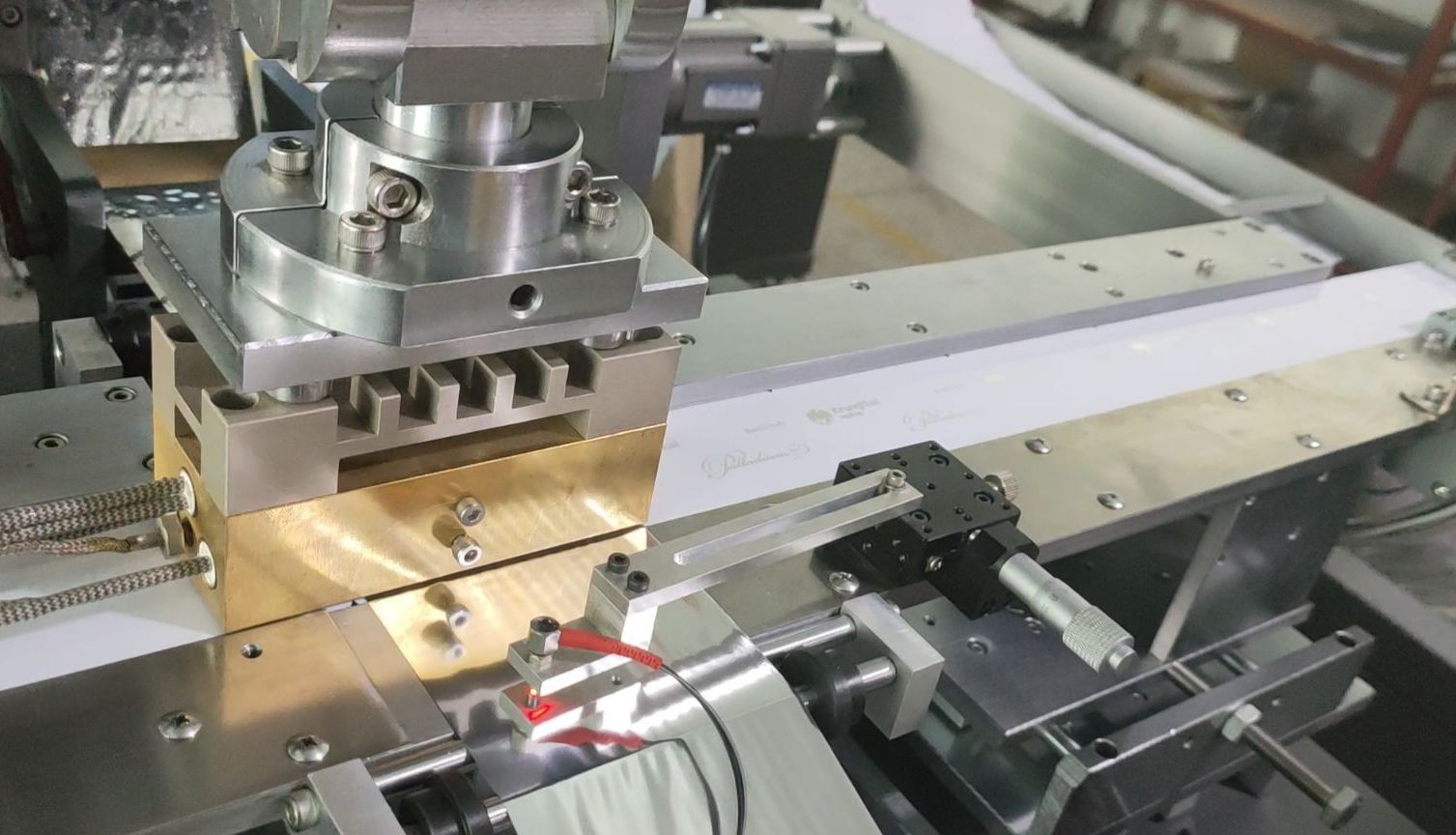

- It applies high-quality servo motor as operation power to ensure good stability and quality stamping. Running speed and pressing stroke are adjustable.
- Stepping distance for gilding film can be adjusted.
- PLC control is adopted for reliable automatic running, and the machine will halt and alarm automatically in case of no card or failure occurring.
- High-quality imported temperature controller is used to control the hot stamping temperature for better stamping quality.
1. Power supply:AC220V, 50/60 Hz
2.Dimensions (LxWxH):1200×820×1580mm
3.Weight: around 390 kg
4. Control mode: PLC+ stepping system
5. Compressed air: 6 KG/cm2 30L/min
6. Speed: 3000 cards per hour
7. Material: CR80 cards 0.50-0.85 mm thick
8. Power: 2.5KW
9. Position accuracy: ±0.2mm
10. Stamping temperature range: 120-180 centigrade degrees (normally 140-150)
11. Stamping area on card surface: no more than 48mm in card width direction and no more than 80mm in card length direction.
