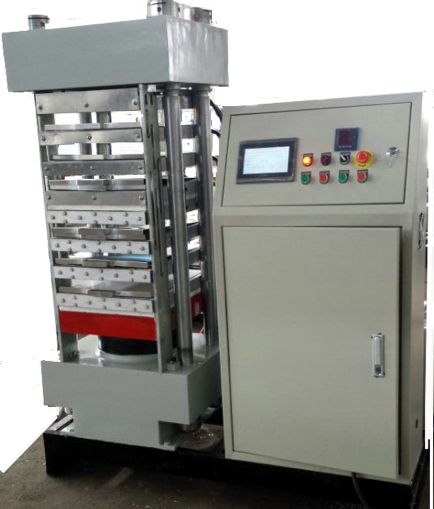

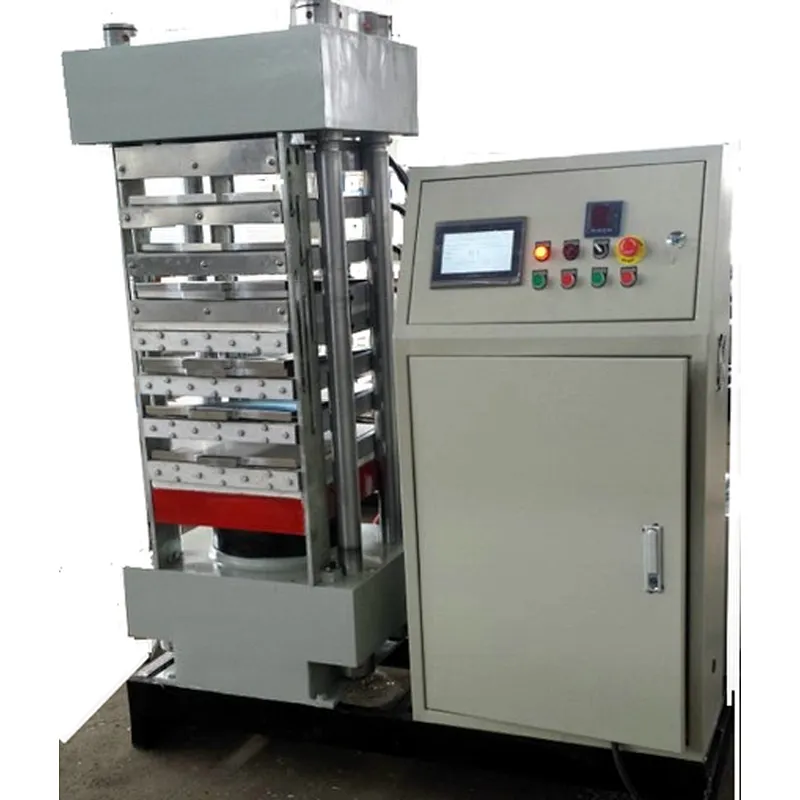

Card Laminating Machine YLL-16A3S

Model NO.: YLL-16A3S
Delivery: EXW,FCA,FOB,CIF
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: about 30 Day

Quantity:

Product Description
Application Description

Product Technical Specification

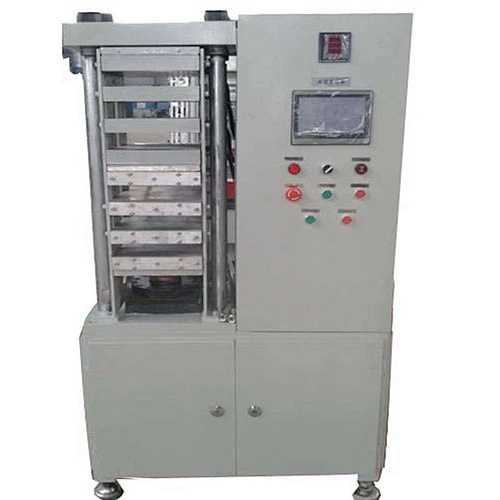

Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-16A3S

Plastic Card Laminator YLL-16A3S is designed to laminate the bonded PVC sheet assembly into the thicker PVC sheets to be punched. It has one tower with 3 hot openings and 3 cooling openings. It is controlled by PLC which can ensure reliable and precise lamination effect. Plastic Card Laminator YLL-16A3S is also named as Smart Card Pressing Machine or Card Laminating Machine YLL-16A3S.

Feature Description

It is controlled by PLC to ensure reliable performance.
It has the best performance/price ratio, which is very suitable for middle or small card factory.
The big size cooling parallel loop is specially designed to ensure better cooling effect.

Technical Parameters

1. PVC sheet layout: 3×8, 4*8 or 5*5 or any size smaller than 420×520mm
2. Laminating templatematerial and size: Steel/420×520mm
3. Daylight number/distance: 3 hot daylights (on the upper position with total 4 hot templates), 3 cool daylights(on the lower position with total 4 cooling templates), 55mm
4.Hydraulic cylinder number/diameter/stroke: 1 main cylinder (diameter 220mm)
5.Pressure control precision: +/-0.5Mpa
6. Work pressure: 0.3-16Mpa (adjustable).
7. Temperature control precision: +/- 2.5℃
8. Heating temperature: ≤250℃
9. Power: 15 KW (Maximum)
10. Power supply: 380VAC/3phase/5 wires,50/60HZ
11. Dimension: around 1600×880×1900mm
12. Gross weight: around 1800 kg.

Plastic Card Laminator YLL-16A3S is designed to laminate the bonded PVC sheet assembly into the thicker PVC sheets to be punched. It has one tower with 3 hot openings and 3 cooling openings.
Note: Pls watch the machine video by click the YOUTUBE address:
