Product Technical Specification
Contactless Card INLAY Sheet Hole Puncher/Automatic Prelam Sheet Hole Puncher/ RFID Card Inlay Sheet Chip Hole Die Cutter YHP-A/
INLAY Sheet Hole Puncher YHP-A

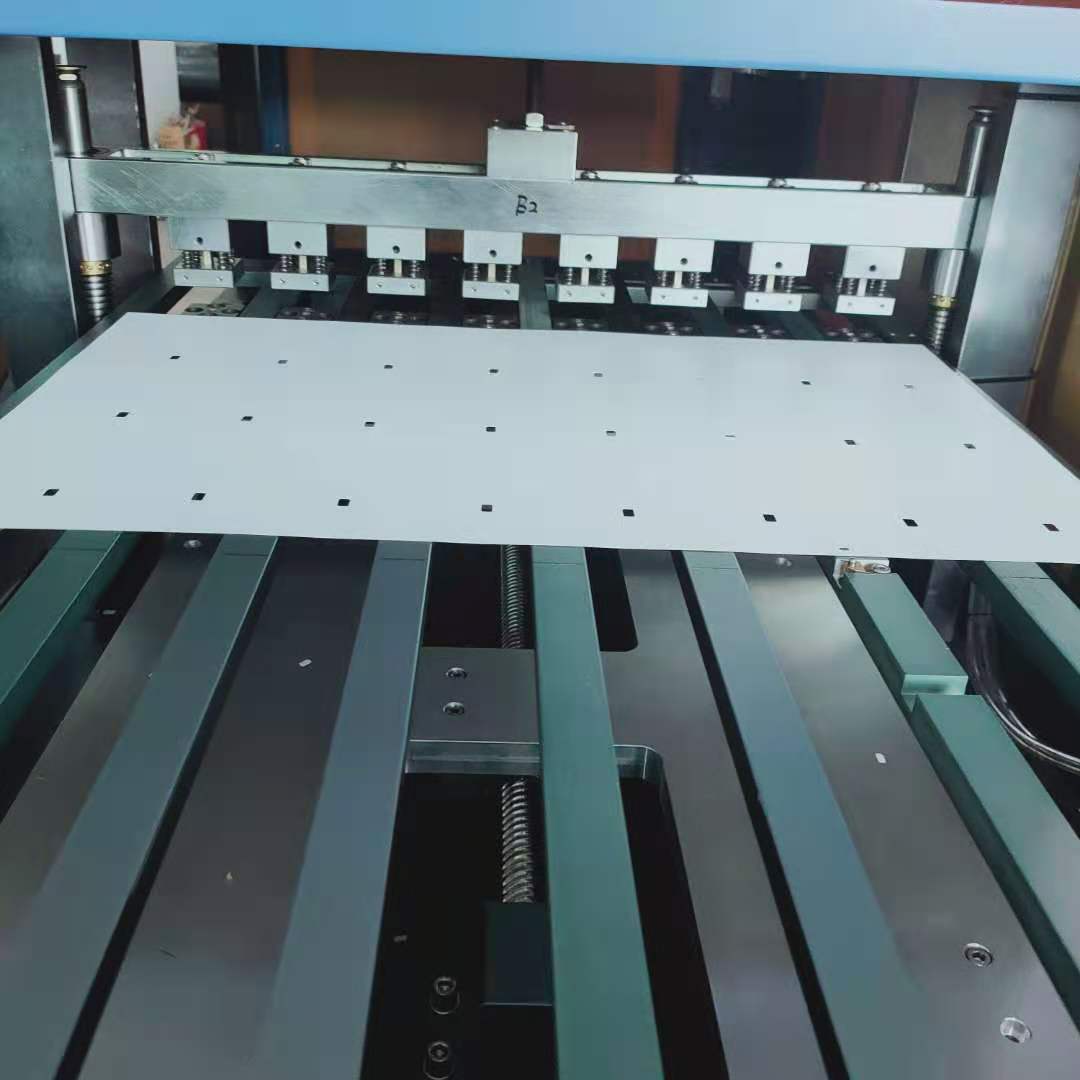

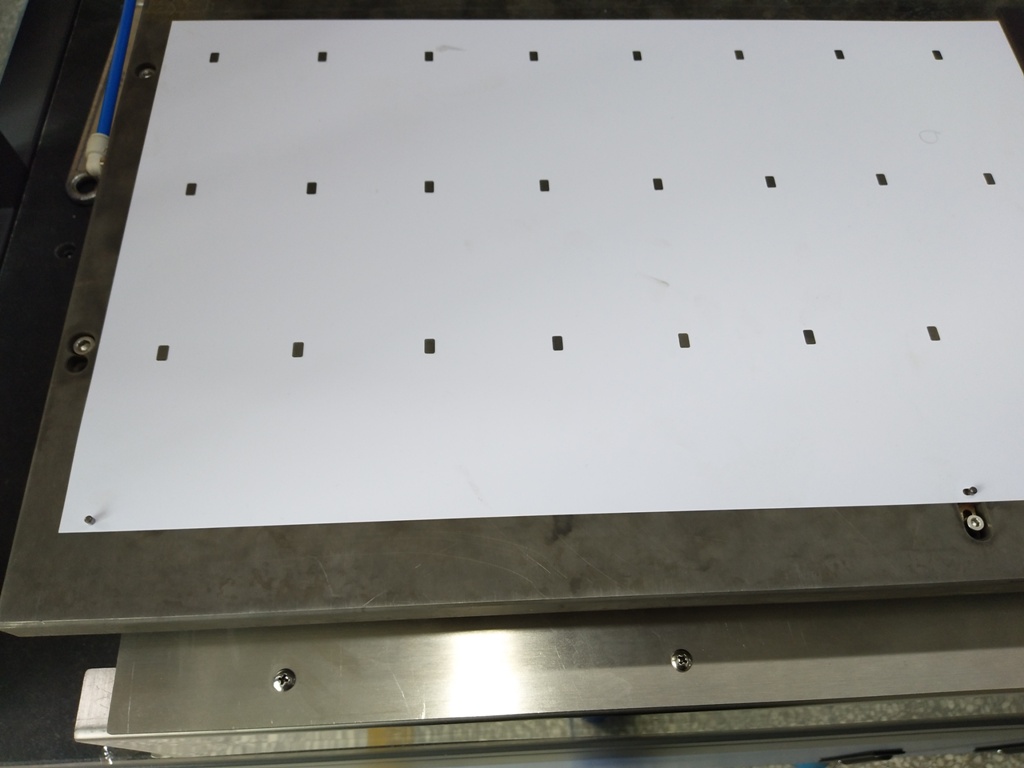

Contactless Card INLAY Sheet Hole Puncher YHP-A is designedto punch chip fixing holes for installing built-in module in the process of contactless card INLAY sheet production.The position of chip fixing holes are adjustable in a certain range by adjusting each punching mould positions. It has two sets of punching moulds, one is for standard big chip (COB chips, MOA2, MOA4), and another is for smaller chip (MOA8 chips).
As an indispensable machine of RFID card Inlay sheet production line, it is also known or named as RFID Card INLAY Sheet Hole Puncher, Automatic Prelam Sheet Hole Puncher or RFID Card Inlay Sheet Chip Hole Die Cutter YHP-A.
Technical parameters
Contactless Card INLAY Sheet Hole Puncher/Automatic Prelam Sheet Hole Puncher/ RFID Card Inlay Sheet Chip Hole Die Cutter YHP-A/
INLAY Sheet Hole Puncher YHP-A
Contactless Card INLAY Sheet Hole Puncher YHP-A is designedto punch chip fixing holes for installing built-in module in the process of contactless card INLAY sheet production.The position of chip fixing holes are adjustable in a certain range by adjusting each punching mould positions. It has two sets of punching moulds, one is for standard big chip (COB chips, MOA2, MOA4), and another is for smaller chip (MOA8 chips).
As an indispensable machine of RFID card Inlay sheet production line, it is also known or named as RFID Card INLAY Sheet Hole Puncher, Automatic Prelam Sheet Hole Puncher or RFID Card Inlay Sheet Chip Hole Die Cutter YHP-A.
Technical parameters
- Applicable layout: 3×8,4×8, 5×5
- Applicable material (carrier) : Plastic materials like PVC, ABS and PETG
- Number of die head: 3, 4, 5 or 8
- Compressed air:5kg/cm2, 50L/min
- cutting speed (max.): 300-400 sheets per hour
- Power supply :AC220V, 50/60HZ
- Position precision: 0.1mm
- Power:1kW
- Weight: around 250 kg
- Dimension:L1350×W700×H1550
Contactless Card INLAY Sheet Hole Puncher YHP-A is designed to punch chip fixing holes for installing built-in module in the process of contactless card INLAY sheet production.
Note: Pls watch the machine video by click the YOUTUBE address: https://www.youtube.com/watch?v=sqkwPivcVbA
Note: Pls watch the machine video by click the YOUTUBE address: https://www.youtube.com/watch?v=sqkwPivcVbA
