Product Technical Specification

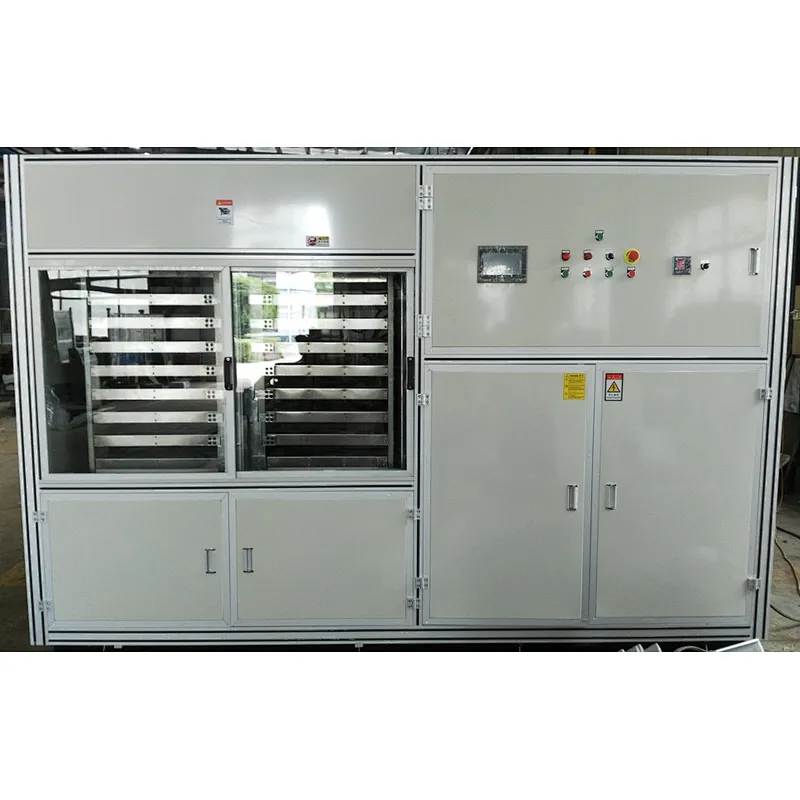

Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-27C+ 560*750
(Automatic tray moving from hot tower to cool tower, suitable for 6*8 and 7*8 layout, 2 towers, 7 daylights for each tower, 4 cylinders for each cylinder, Aluminum alloylamination template, PLC control, designed for RFID INLAY sheets or RFID chip card lamination)
Feature Description
Technical Parameters1. PVC sheet layout: 6×8, 7×8, 5×10, 5×12
2. Laminating template size and material:560×750mm,aluminum alloy

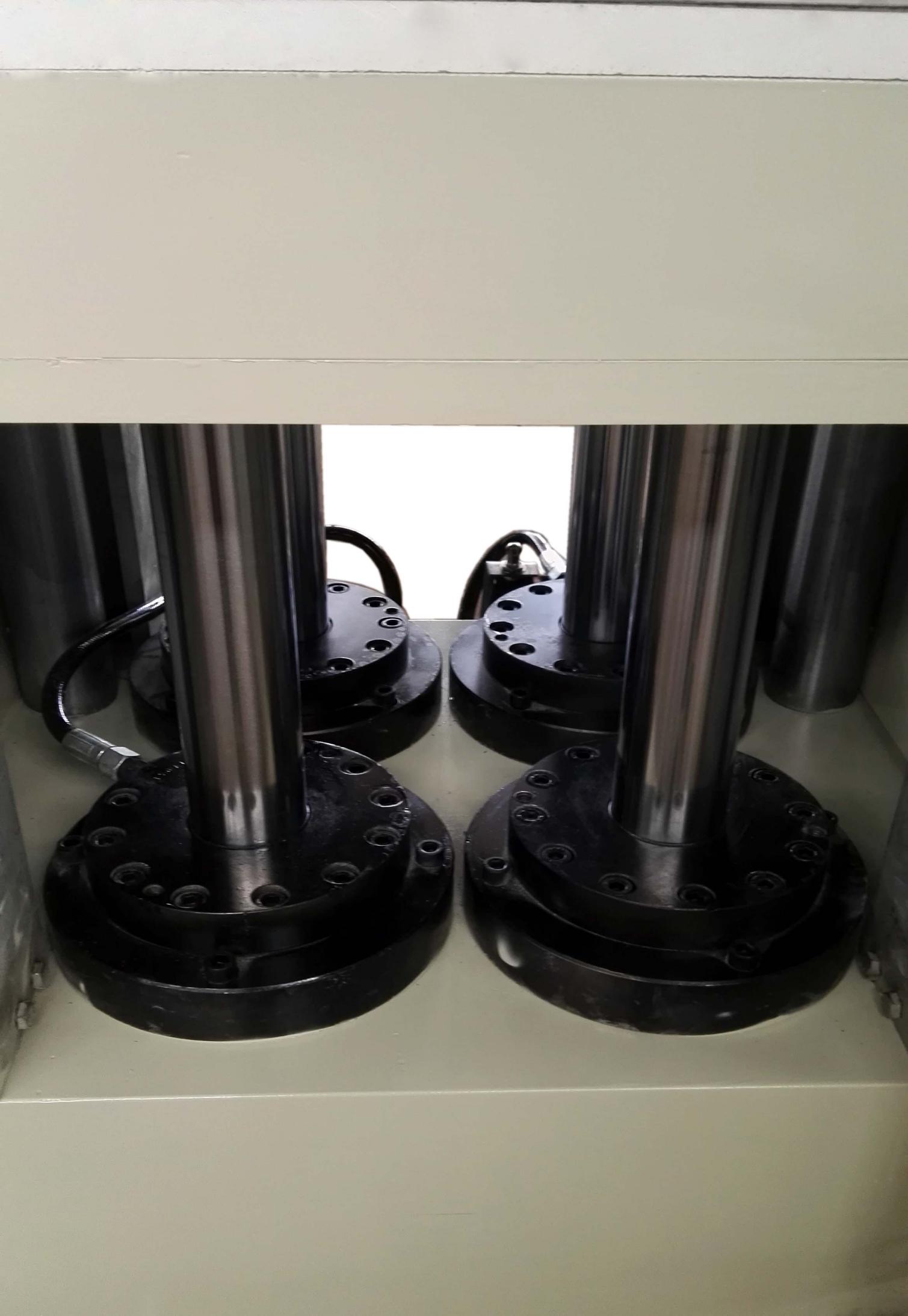

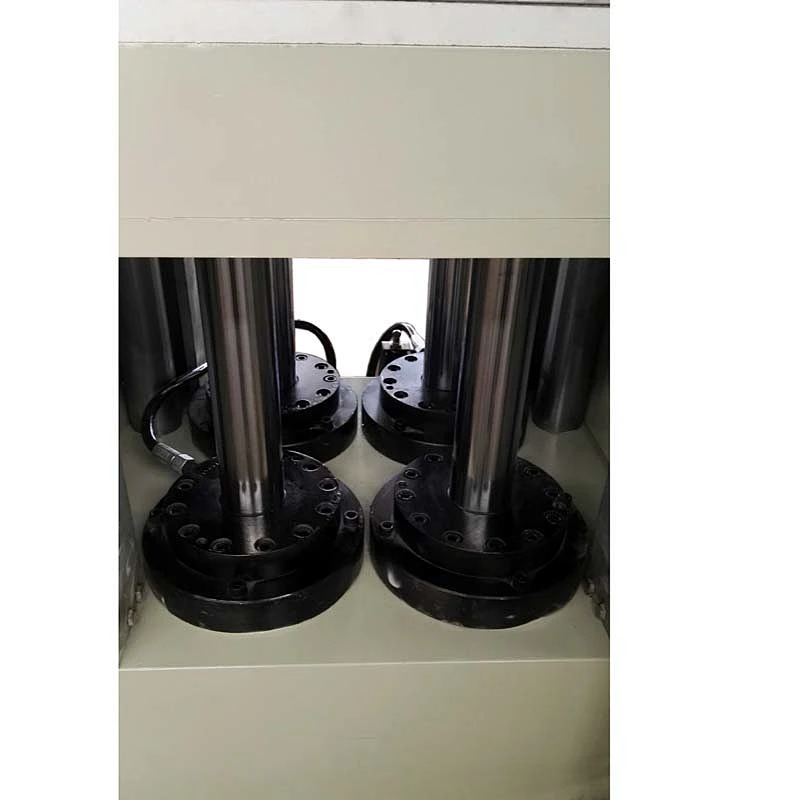

3.Hydraulic cylinder number: 4 small cylinders (diameter 125mm) for each tower

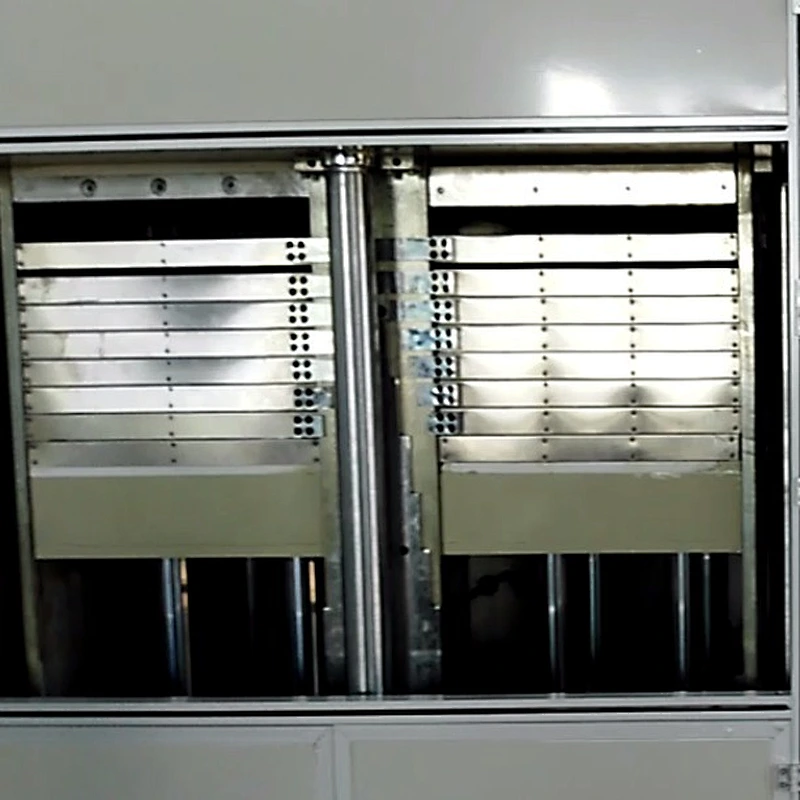

4.Daylightnumber/distance: 7daylights, 2 towers/50mm
5. Control mode: PLC
6.Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)
7.Temperature control precision: +/-1℃
8. Heating temperature:≤200℃
9.Power: 35 KW (Maximum)
10. Power supply: AC380V 50/60HZ 3phase5 wires
11. Dimension: 2500mm×1200mm×1850mm
12.Gross weight: 3500 kg.
13. Speed: 12000-15000 cards per hour
Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-27C+ 560*750
(Automatic tray moving from hot tower to cool tower, suitable for 6*8 and 7*8 layout, 2 towers, 7 daylights for each tower, 4 cylinders for each cylinder, Aluminum alloylamination template, PLC control, designed for RFID INLAY sheets or RFID chip card lamination)
Feature Description
- It can realize automatic tray moving from hot tower to cool tower, which can greatly reduce the labor level in laminationprocess.
- It is controlled byProgrammable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;
- It is specially designed for massive lamination of various cards including contactless RFID chip cards and RFID INLAY sheets.
- Automaticlaminationparallelism adjustment is available.
- The pressure and temperature control module is applied to ensure higher control precision.
- If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
- The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.
Technical Parameters
2. Laminating template size and material:560×750mm,aluminum alloy
3.Hydraulic cylinder number: 4 small cylinders (diameter 125mm) for each tower
4.Daylightnumber/distance: 7daylights, 2 towers/50mm
5. Control mode: PLC
6.Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)
7.Temperature control precision: +/-1℃
8. Heating temperature:≤200℃
9.Power: 35 KW (Maximum)
10. Power supply: AC380V 50/60HZ 3phase5 wires
11. Dimension: 2500mm×1200mm×1850mm
12.Gross weight: 3500 kg.
13. Speed: 12000-15000 cards per hour
