Product Technical Specification

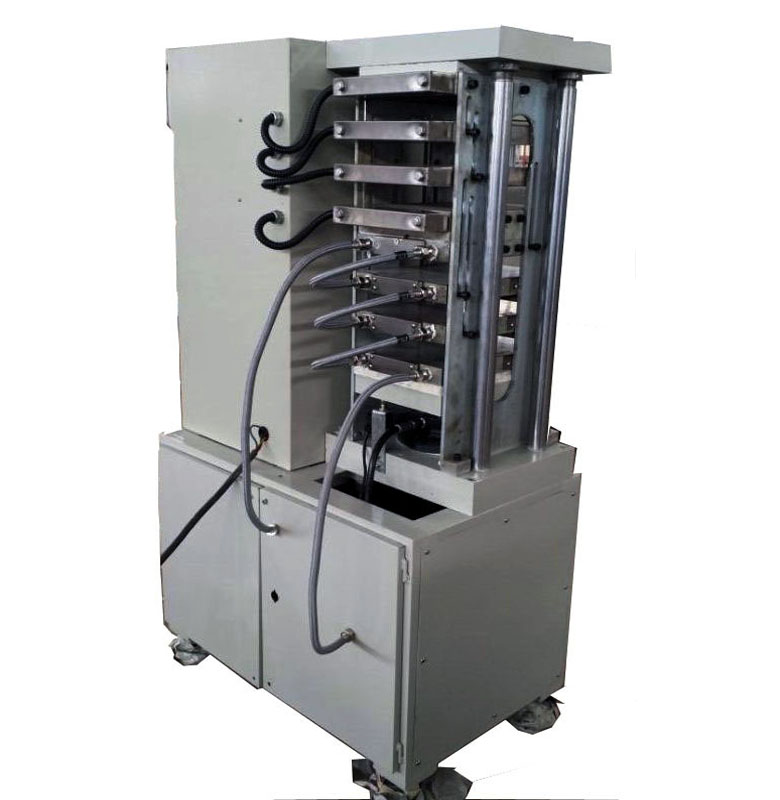

Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-16A4S
Plastic Card Laminator YLL-16A4S is designed to laminate the bonded PVC sheet assembly into the thicker PVC sheets to be punched. It has one tower with 3 hot openings and 3 cooling openings. It is controlled by PLC which can ensure reliable and precise lamination effect. Plastic Card Laminator YLL-16A4S is also named as Smart Card Pressing Machine or Card Laminating Machine YLL-16A4S.
2. Laminating template size: 230×315mm suitable for A4 PVC sheet lamination
3. Daylight number/distance: 1 tower, 3 hot daylights, 3 cool daylights, 40mm
4. Pressure control precision: +/-1Mpa
5. Work pressure: 0-16Mpa (adjustable).
6. Temperature control precision: +/- 2℃
7. Heating temperature:≤200℃
8. Power: 7.5 KW (Maximum)
9. Power supply: AC380V 50/60HZ 3phase4 wires
10. Dimension: around L800×W550×H1200mm
11. Gross weight: Around 500 kg.
12. Speed: 1000 cards per hour.

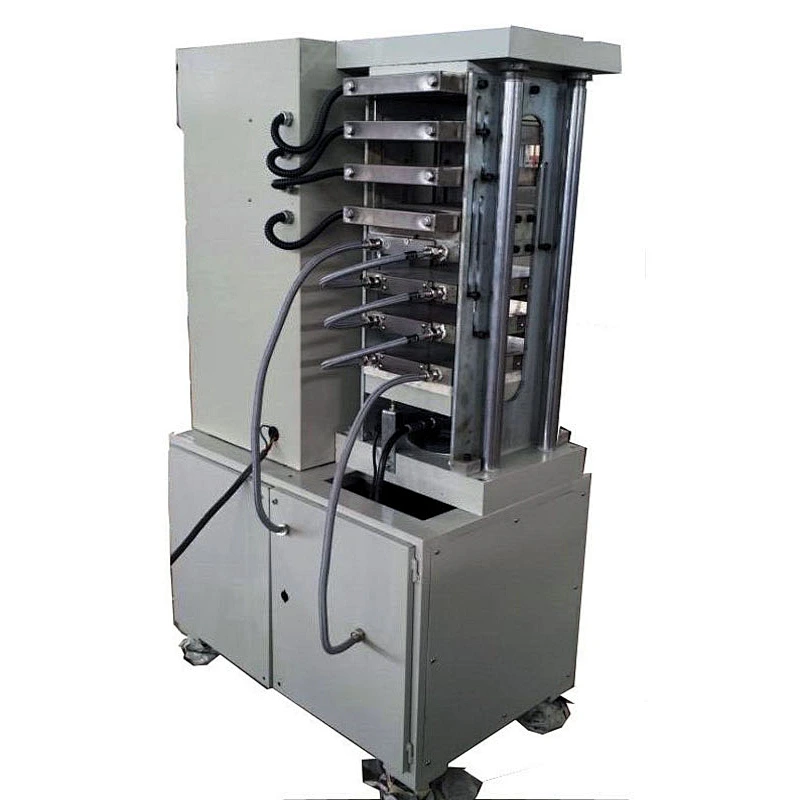

Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-16A4S
Plastic Card Laminator YLL-16A4S is designed to laminate the bonded PVC sheet assembly into the thicker PVC sheets to be punched. It has one tower with 3 hot openings and 3 cooling openings. It is controlled by PLC which can ensure reliable and precise lamination effect. Plastic Card Laminator YLL-16A4S is also named as Smart Card Pressing Machine or Card Laminating Machine YLL-16A4S.
Feature Description
- It is controlled by PLC to ensure reliable performance. It can laminate various cards including RFID cards Inlay.
- It has the best performance/price ratio, which is very suitable for middle or small card factory.
- The big size cooling parallel loop is specially designed to ensure better cooling effect.
Technical Parameters
1. PVC sheet layout: 2×5 for 16A4 model 2. Laminating template size: 230×315mm suitable for A4 PVC sheet lamination
3. Daylight number/distance: 1 tower, 3 hot daylights, 3 cool daylights, 40mm
4. Pressure control precision: +/-1Mpa
5. Work pressure: 0-16Mpa (adjustable).
6. Temperature control precision: +/- 2℃
7. Heating temperature:≤200℃
8. Power: 7.5 KW (Maximum)
9. Power supply: AC380V 50/60HZ 3phase4 wires
10. Dimension: around L800×W550×H1200mm
11. Gross weight: Around 500 kg.
12. Speed: 1000 cards per hour.
