Prelam Sheet Antenna Implanter YAE-25

Model NO.: YAE_25
Delivery: EXW,FOB,FCA,CIF
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: about 30-45 Day

Quantity:

Product Description
Application Description

Product Technical Specification

Contactless Card Antenna Embedding Machine/RFID Card INLAY Sheet Antenna Implanting Machine/Prelam Sheet Antenna Implanter YAE-25

Feature Description

This machine is designed for embedding or implanting the copper wire onto INLAY middle sheets as per the designed track with advancedultrasonictechnology.

It is well known as the most reliable and economical machines in INLAY sheet production.
Mitsubishi 3-axis servo control and MOXA motion control system are applied in the control system to ensure high position precision.
The antenna shape and size can be easily designed in AUTOCAD software.
The antenna embedding applies the advanced ultrasonic technology in order to ensure good embedding result and high efficiency.

As an indispensable machine of RFID card INLAY production line, Contactless Card Antenna Embedding Machine YAE-25 is also known or named as RFID Card INLAY Sheet Antenna Implanting Machine, RFID Card Prelam Sheet Antenna Implanter or Contactless Card Copper Wire Embedder YAE-25.

Technical Parameters

Speed: 1500-2000 pcs per hour.

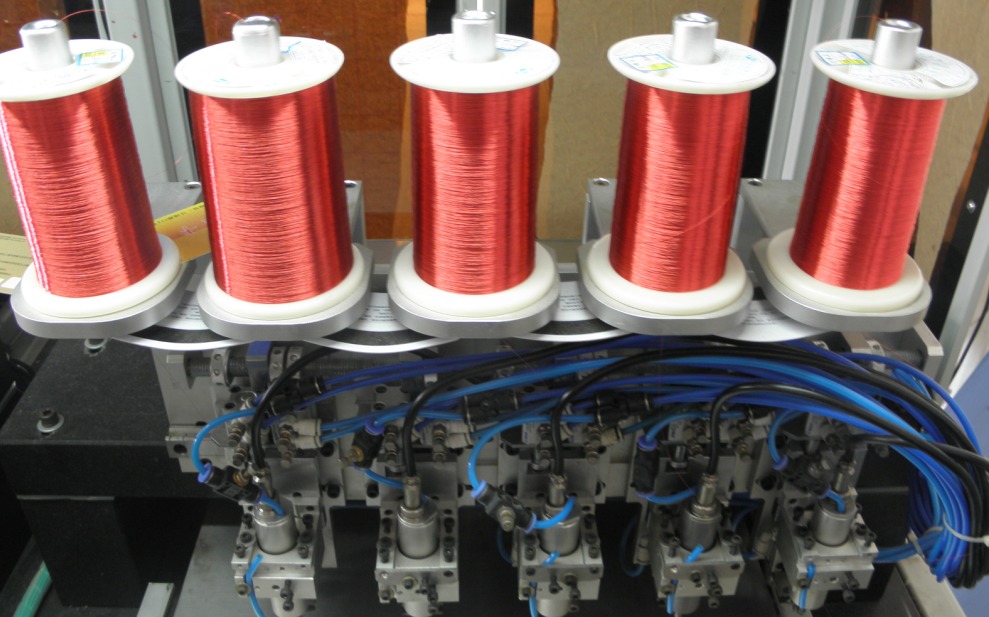

Embedding head number: 5 heads for 5*5 layout.
Worktable number: 2 worktables
Dimension: L1750×W1150×H1600mm
Weight: 1500 KG
Power supply: AC220V 50/60HZ 25A
Power: 3KW
Compressed air: 6 kg/cm²
Air Consumption: 80 L/min.
Control mode: MOXA motion contorl+Mitsubishi servo
Precision: servo step indexing=0.0125
Mechanical adjustment precision: 0.01mm.

This machine is designed for embedding or implanting the copper wire onto INLAY middle sheets as per the designed track with advanced ultrasonic technology.
