IC card Slot Milling Machine/Contact IC card Slotter YIM-4000+

IC card Slot Milling Machine/Contact IC card Slotter YIM-4000+

Model NO.: YIM-4000+
Delivery: EXW,FOB,FCA,CIF
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: about 40 Day

Quantity:

Product Description
Application Description

Automatic IC Card Milling Machine/ IC card Slot Milling Machine/Contact IC card Slotter YIM-4000+

( Contact IC card slot milling machine, Contact IC card slotter, Card machine, smart card production machine)
Function Description

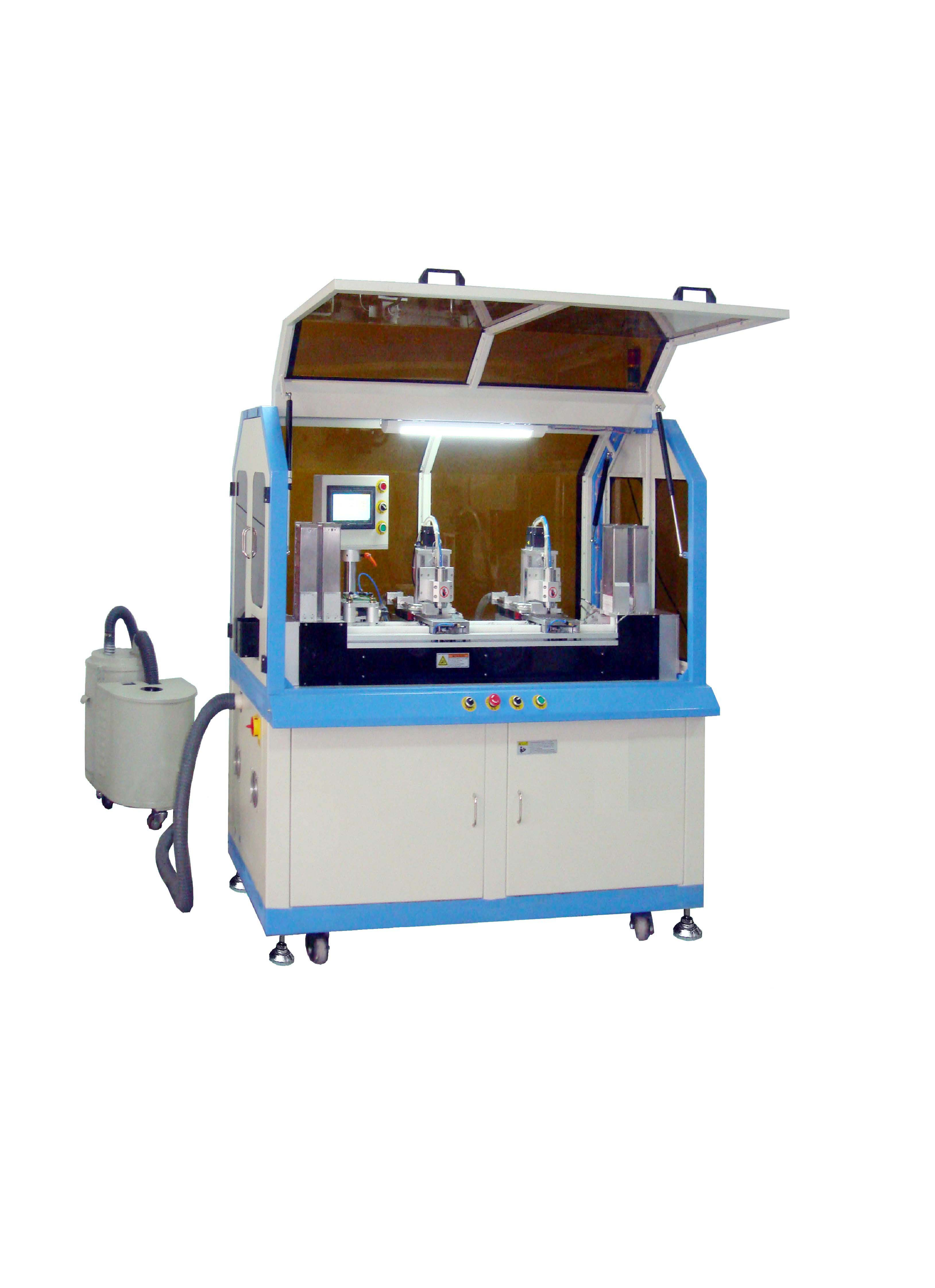

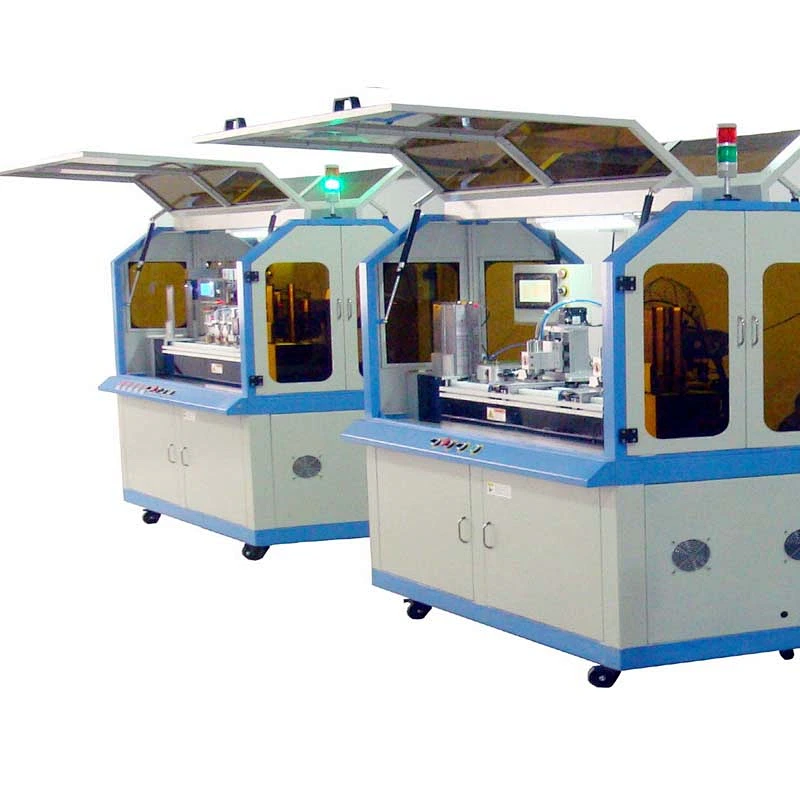

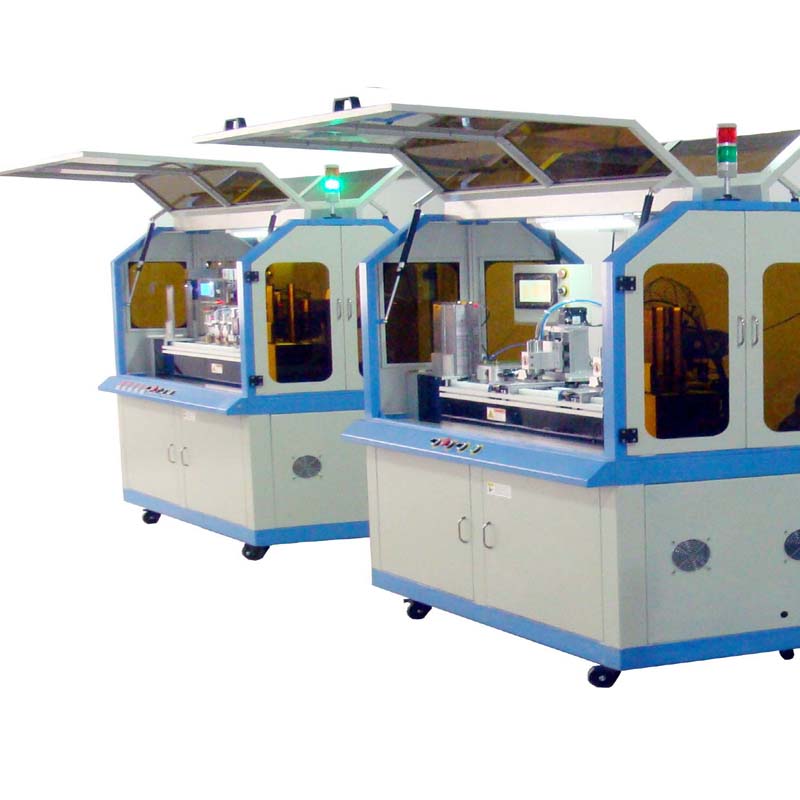

Automatic IC Card Milling Machine YIM-4000+ is designed for milling the slot or cavity for IC chip implanting on plastic card surface in a precise and speedy way. It features robust design, reliable performance and fully automatic operation. It is controlled by PLC, which can well ensure easy parameter setting and stable performance.

Basic configuration:

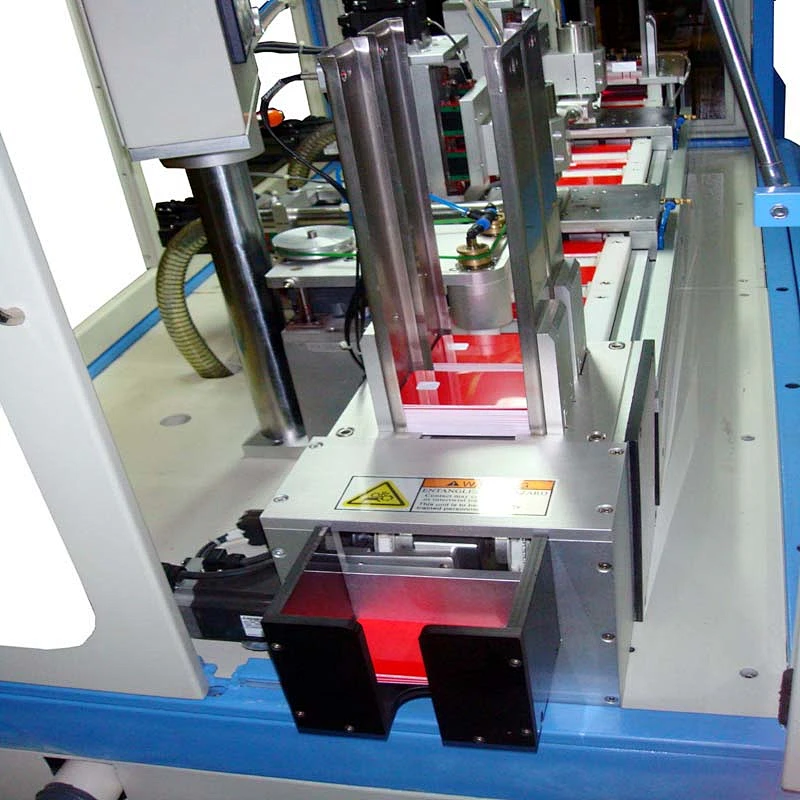

Card feeding magazines (two) –slot milling station #1-slot milling station #2-depth detection stations (two)(optional)-dust absorber -Card Collection magazines (two)

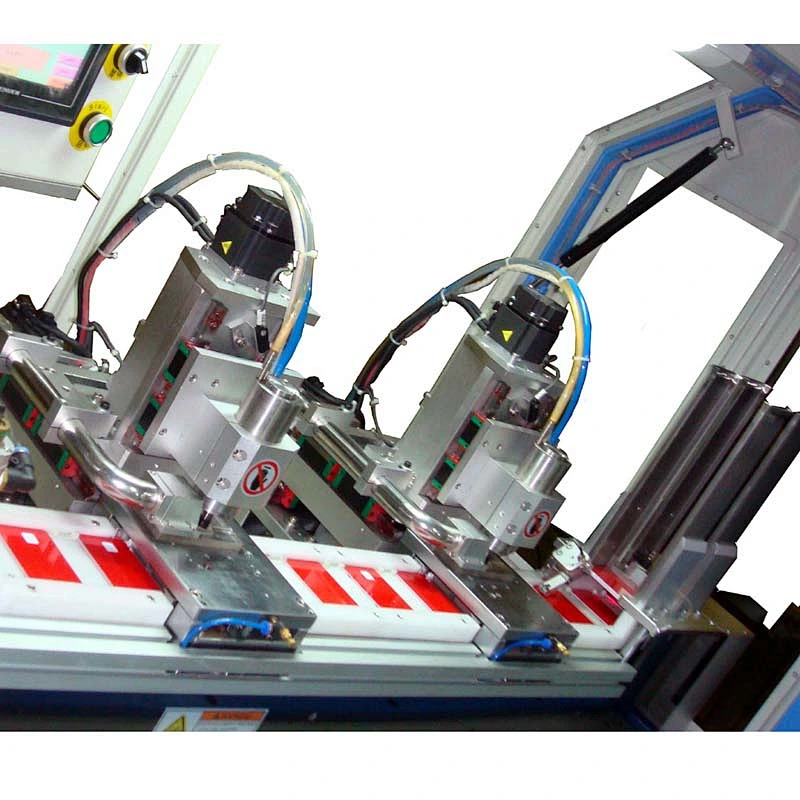

Double-card conveying system can ensure that two cards are milled at the same time in a speedy way.

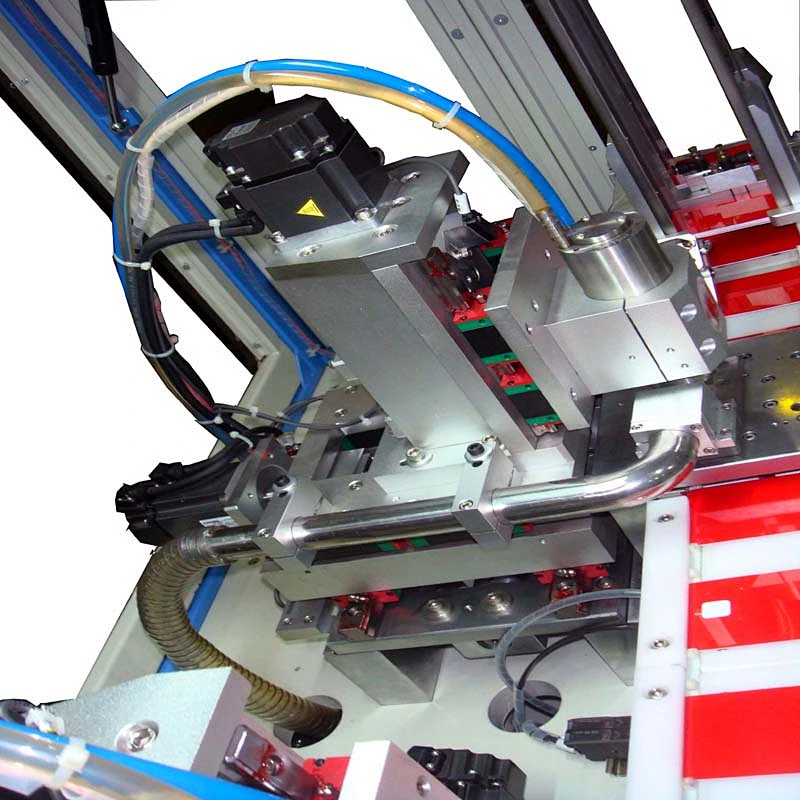

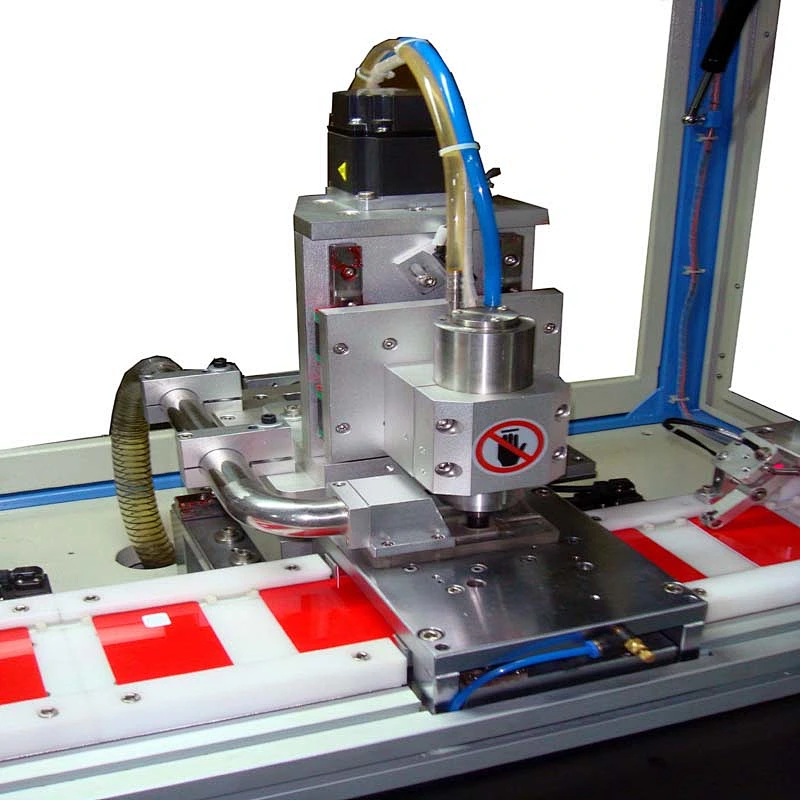

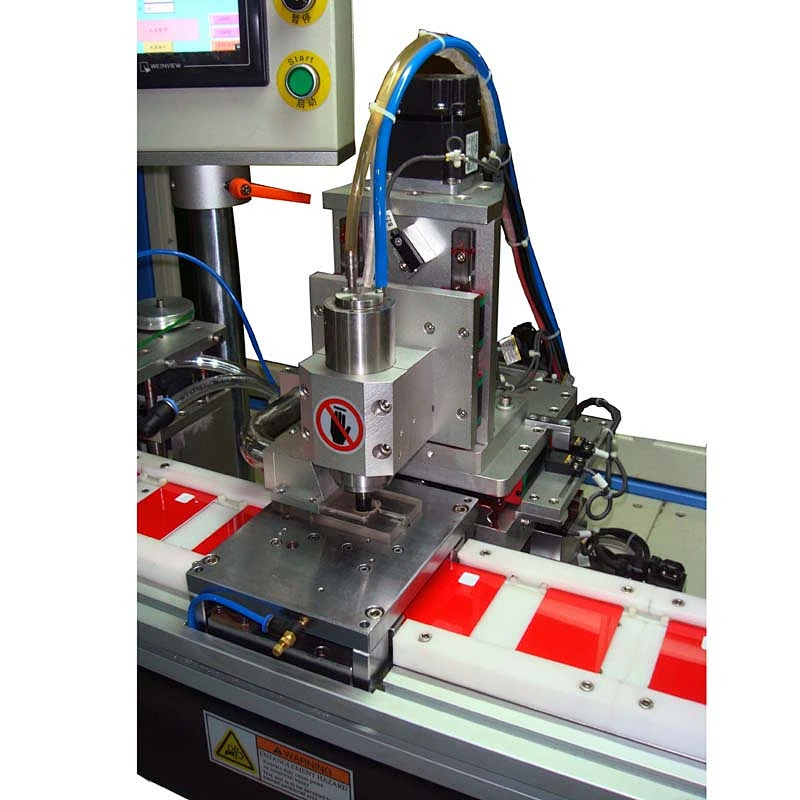

Three-shaft positioning control system drives servo motor to mill the slots of plastic cards.
The parameters of each shaft can be adjusted respectively, and the milling precision can’t be affected by the diameter tolerance of the milling tool.
If such problems as card overlapping, wrong card direction or wrong milling depth (checked by the optional depth detection station), the machine will automatically alarm and stop.

Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=XUqpQccDM-g
Technical specification

Power supply	AC 380V 50/60 HZ	Control method	PLC + Servo system
Total power	6.0 KW	Card specification	ISO CR80/IEC7810 54x85.6mm
Air source	6kg/cm² (dry)	Dimension	Approximately L1750xW800xH1850 mm
Air consumption	Approx. 50L/min	Milling precision	X/Y: ±0.015mm Z: ±0.010mm
weight	Approx 650Kg	Operator	1 Person
Speed	3500~4500pcs/h

Basic configuration:
Card feeding magazines (two) –slot milling station #1-slot milling station #2-depth detection stations (two)(optional)-dust absorber -Card Collection magazines (two)
