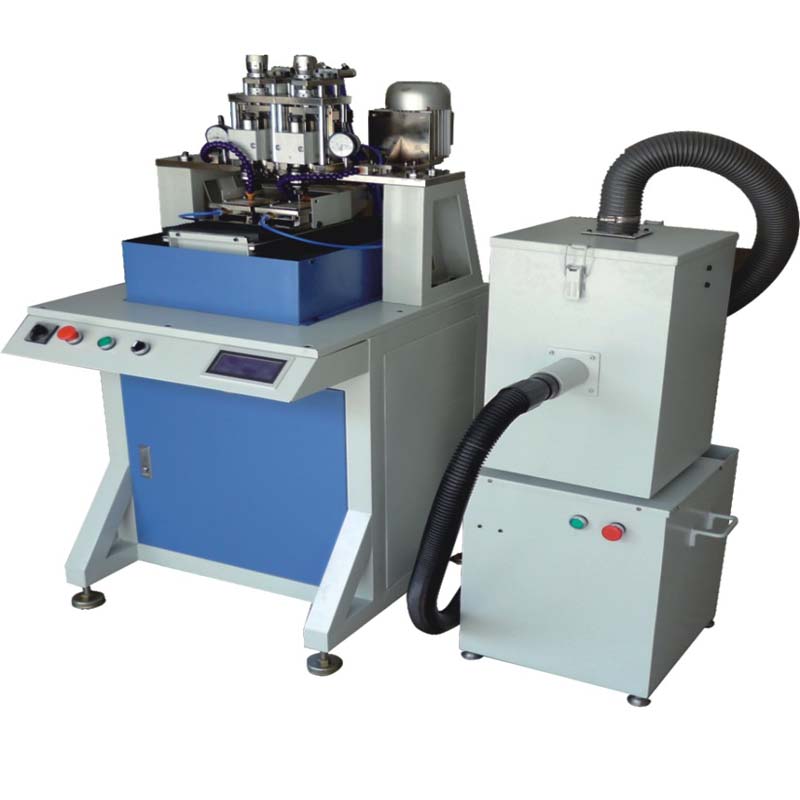

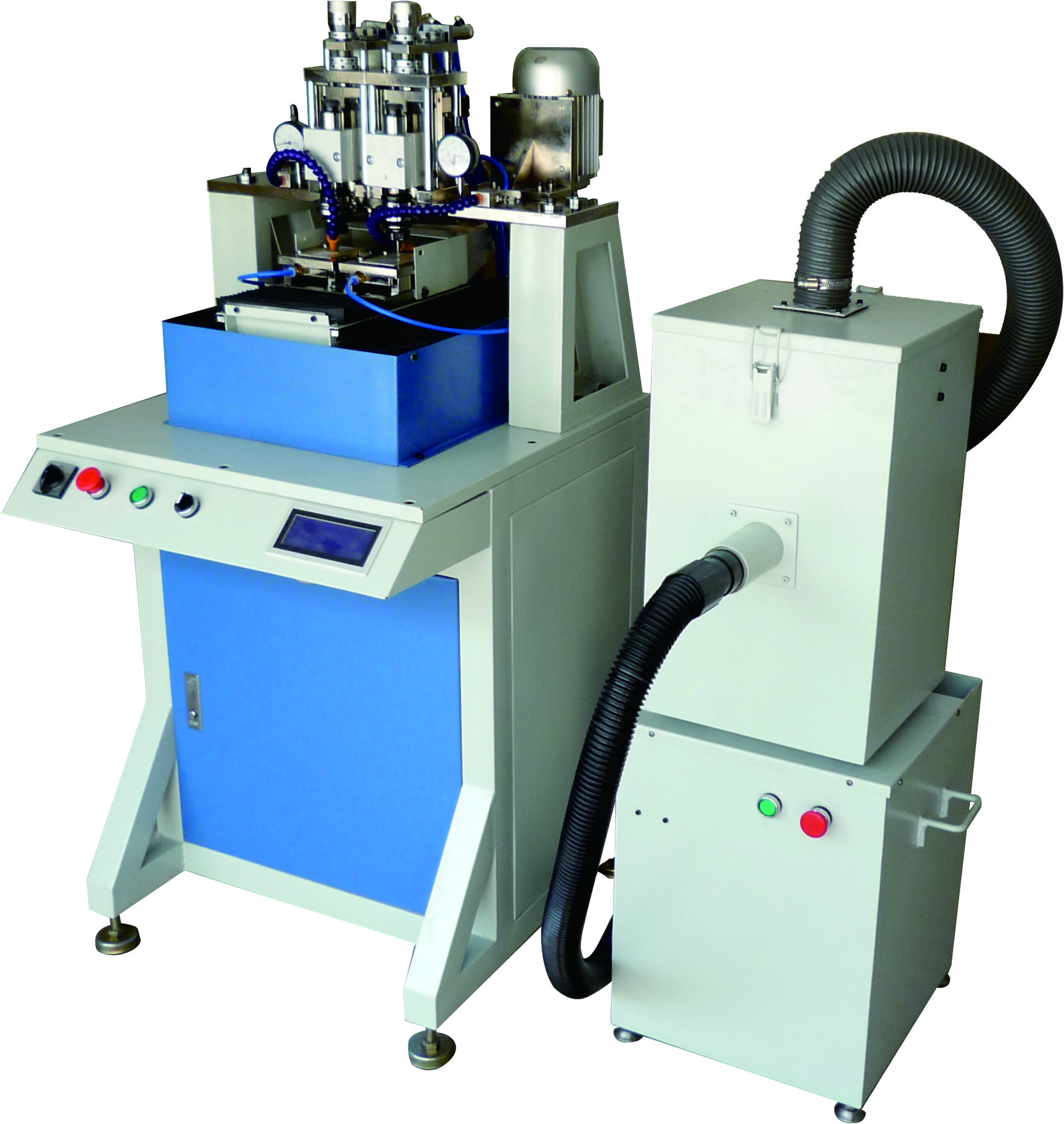

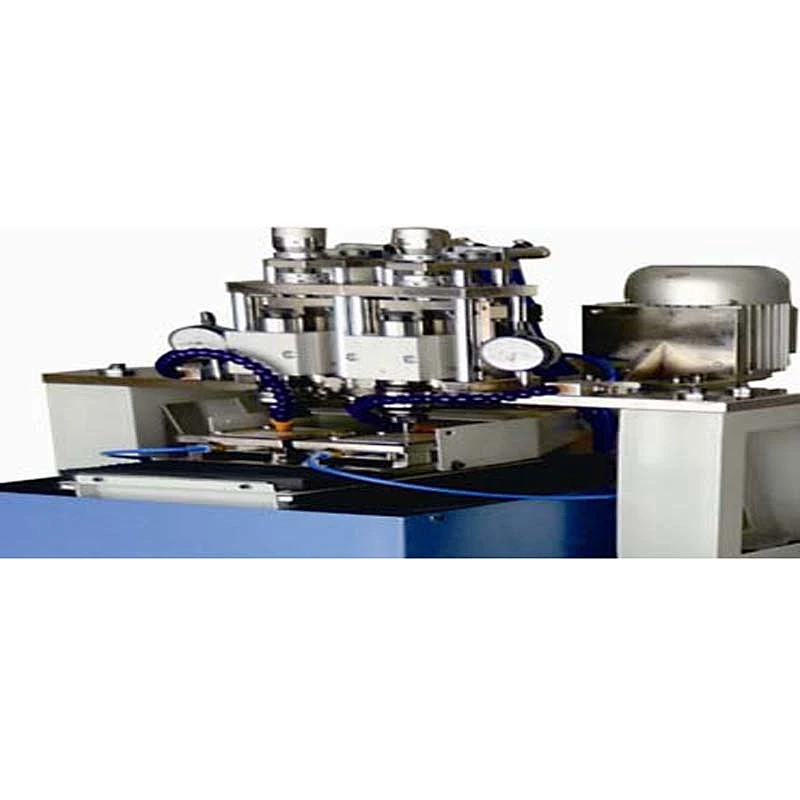

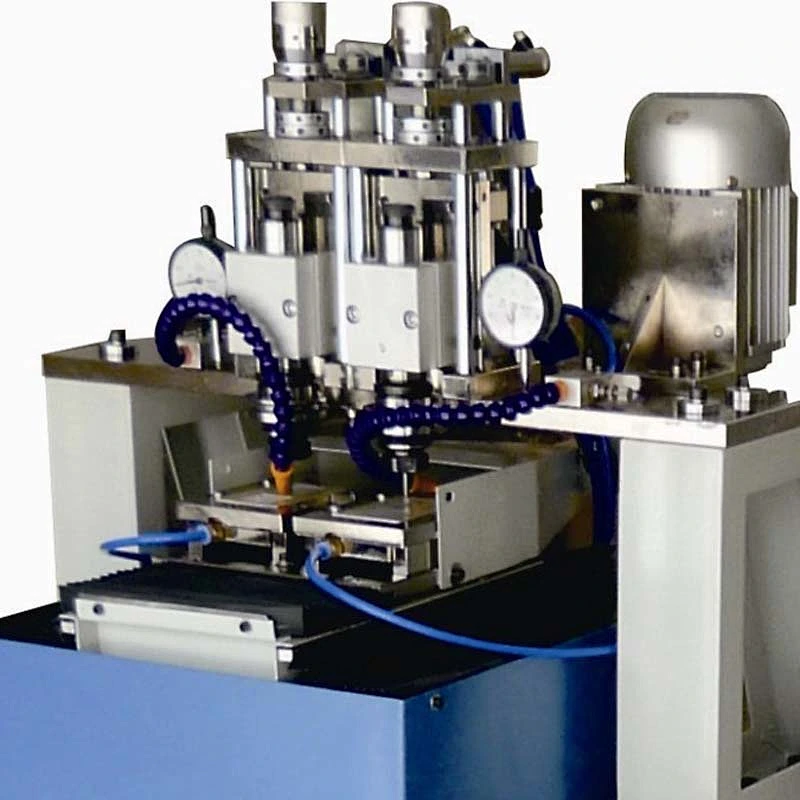

Manual IC Card Milling Machine/IC card Slot Milling Machine/Contact IC card SlotterYIM-1
(Card machine, smart card production machine, IC card slot milling machine, IC card slotter)
Feature Description

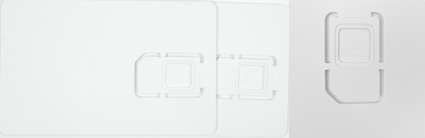

The machine is designed for milling the slot or cavity for contact IC chip fixing on the IC card surface.
(Card machine, smart card production machine, IC card slot milling machine, IC card slotter)
Feature DescriptionThe machine is designed for milling the slot or cavity for contact IC chip fixing on the IC card surface.
- It is controlled by Mitsubishi dual-axis positioning module and touch screen to ensure the system reliability in operation.
- All the pneumatic parts are made by SMC to ensure durability in operation.
- The parameter setting or changing can be easily done on touch screen. Technical Parameters
- Speed: 800-1000 units per hour
- Compressed air: 6 kg/cm2
- Air Consumption: 30 L/min.
- Power:1.5 KW
- Power supply: AC220V 50/60HZ4
- Weight: 180 KG
- Dimension: L600×W550×H1200mm
Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=rQEn-sid9-I
https://www.youtube.com/watch?v=rQEn-sid9-I
The machine is designed for milling the slot or cavity for contact IC chip fixing on the IC card surface.
