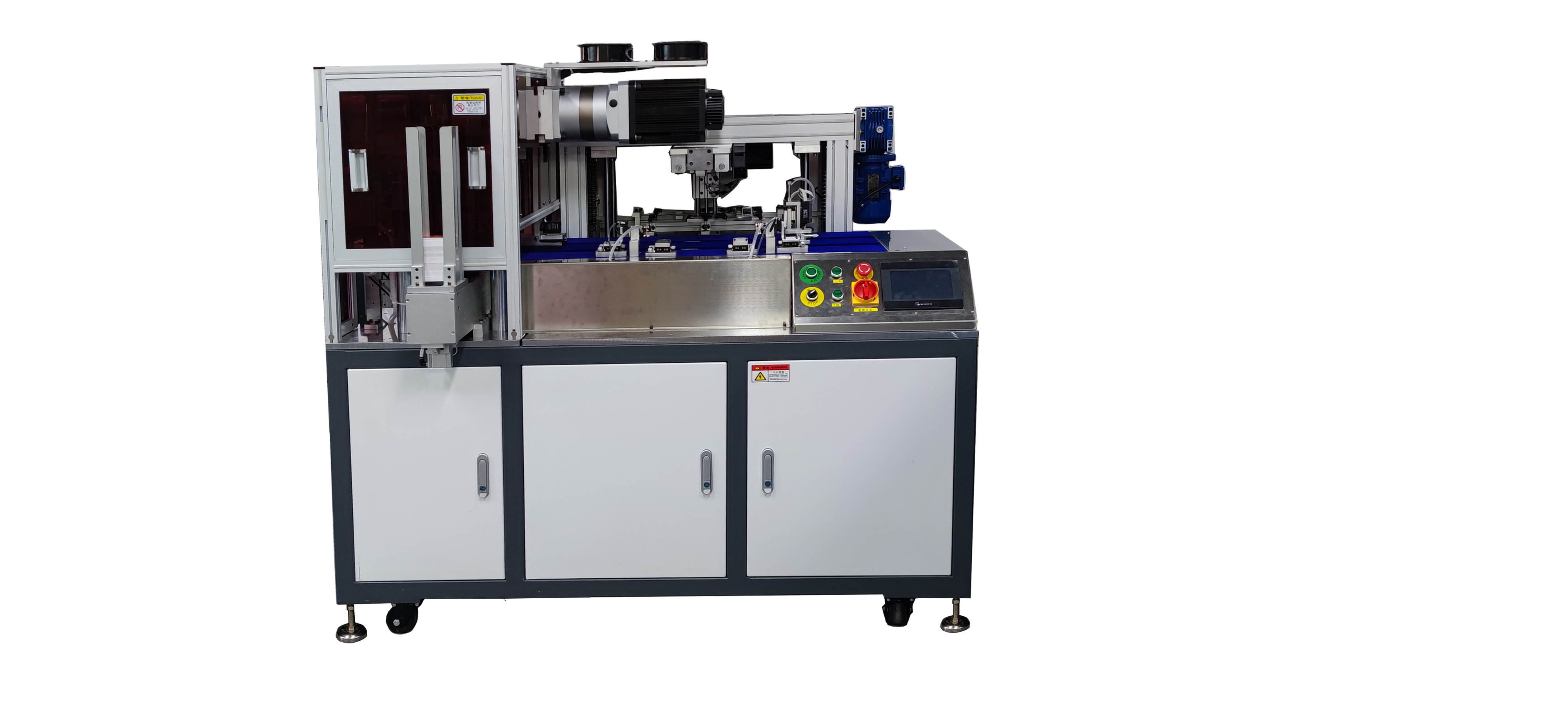

Full Automatic Card Punching Machine/Full Auto Card Puncher/Full Auto Card Die Cutter/Card Die Cutting Machine YLP-FA-600
★ Function and Application Introduction
This machine model is known as the most economic automatic card puncher. It features compact structure, reliable performance, economic price and full automatic operation. It is controlled automatically by the PLC program, and the Chinese and English bilingual touch screen is working with a friendly man-machine interface. Firstly, the high-sensitivity laser sensor and two groups of stepping system are used to realize the longitudinal search and positioning, and then the servo motor drives the high-precision ball screw module to carry out the transverse sheet positioning and feeding, which is featuring high speed and high precision. The automatic sheet picking and feeding system can greatly reduce the work intensity of the operator.
The machine-Full Automatic Card Punching Machine YLP-FA-600 is also named as Full Auto Card Puncher, Full Auto Card Die Cutter or Full Automatic Card Die Cutting Machine YLP-FA-600.
★ KeyFeatures- The feeding and conveying system adopts the servo motor for conveying, and the material picking and placing position is adjustable.
- The punching feed is driven by servo motor and fed by high-precision ball screw module. The position parameters of each punching point are adjustable with high precision.
- It uses high-power servo motor as punching power, with the features of low noise, fast speed, stable power, and adjustable punching speed, when it is needed to punch cards of different thickness , the punching effect is better.
- The PLC program controls automatic operation,it can realize real-time monitoring card output with automatic shutdown and alarm in case of abnormal situations.
| Power supply | AC 380V/50 HZ | Applicable layout | A4,A3+ layout |
| Power | 6.5KW | Control mode | PLC program control + servo system |
| Air Source | 6 kg/c㎡(with no water) | Operator number | 1 person |
| Airconsumption | About 100L/min | Dimension | L1600×W1250×H1650mm |
| Weight | About 1000Kg | Punched card | Comply with ISO CR-80-ISO7810 international standard |
| Punching precision | ±0.10mm | Speed | 6000~16000 cards /hour |
| Applicable materials | PVC, ABS, pet, PETG, paper card, PVC and ABS mixed materials, etc. |
