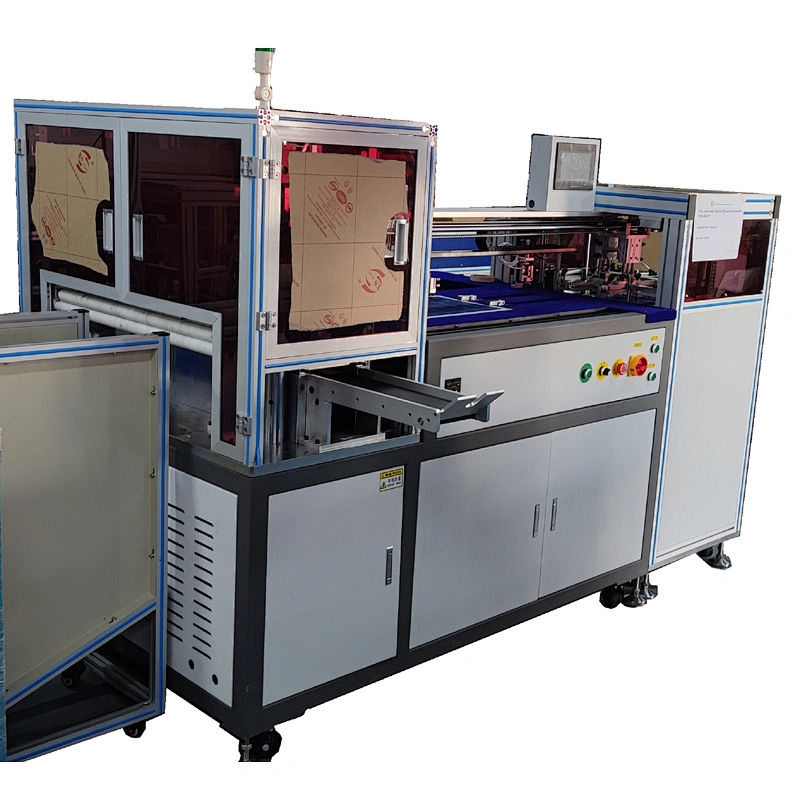

Full Automatic Special Shape Card Puncher YLFP-SP-XY

Full Automatic Special Shape Card Puncher YLFP-SP-XY

Model NO.: YLFP-SP-XY
Delivery: EXW,FOB,CIF,CFR,FCA
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: 30-45 Days

Quantity:

Product Description
Application Description

FullAutomatic Special Shape Card Puncher/Customized Shape Card Puncher/Specially Shaped Card Die Cutter/Full Auto Abnormal Shape Card Die Cutter YLFP-SP-XY

The card making machine -Full Automatic Special Shape Card Puncher YLFP-SP-XY. is also known as Customized Shape Card Puncher, Specially Shaped Card Die Cutter or Abnormal Shape Card Die Cutter YLFP-SP-XY.

Functional features
Itsdistance can be freely adjusted according to the printed sheet layout, and the material punching does not need to be cut in advance.

The high-power servo motor applied in the machine has the advantages of low power noise, stable power output and adjustable punching speed. When it is needed to punch cards with different thickness, its performance is much better.
10 sets of layout position parameters can be stored in the system, which is convenient to call out and use, and it is convenient to change different punched products.
The PLC program control can realize automatic operation and can give an timely problem alarm and operation shutdown.

Main Technical Parameters

Power supply	AC 380V/50 HZ	Suitable material	PVC, ABS, paper card etc.
Power	5.5KW	Maximum layout	350X600mm(Max)
Air supply	6 kg/c㎡(no water)	Output	4000~6000 pcs /hour(depends on the punch head number)
Air consumption	About 70L/min	Control mode	PLC program+ servo system
Weight	850Kg	Number of operators	1 person
Punch precise	±0.10mm	Dimensions	L1700×W1080×H1600mm

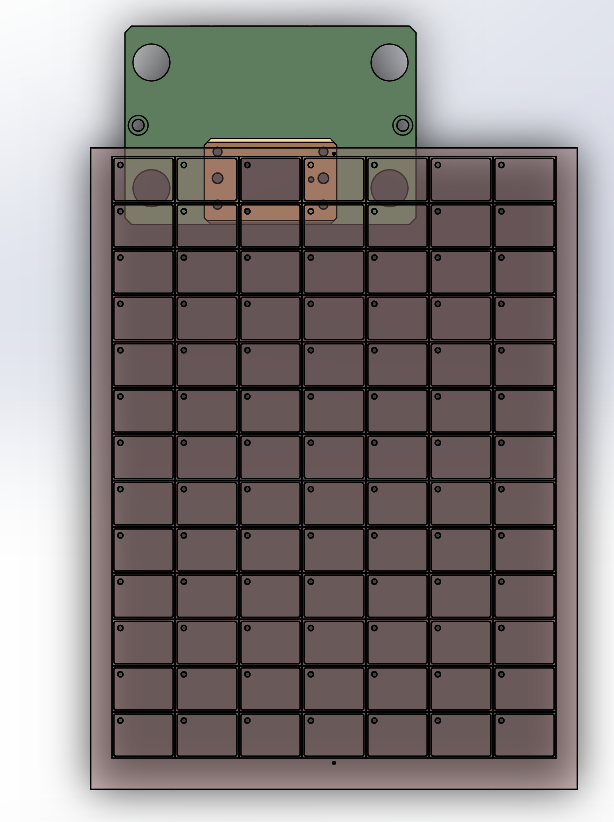

Samples of big sheets to be punched:

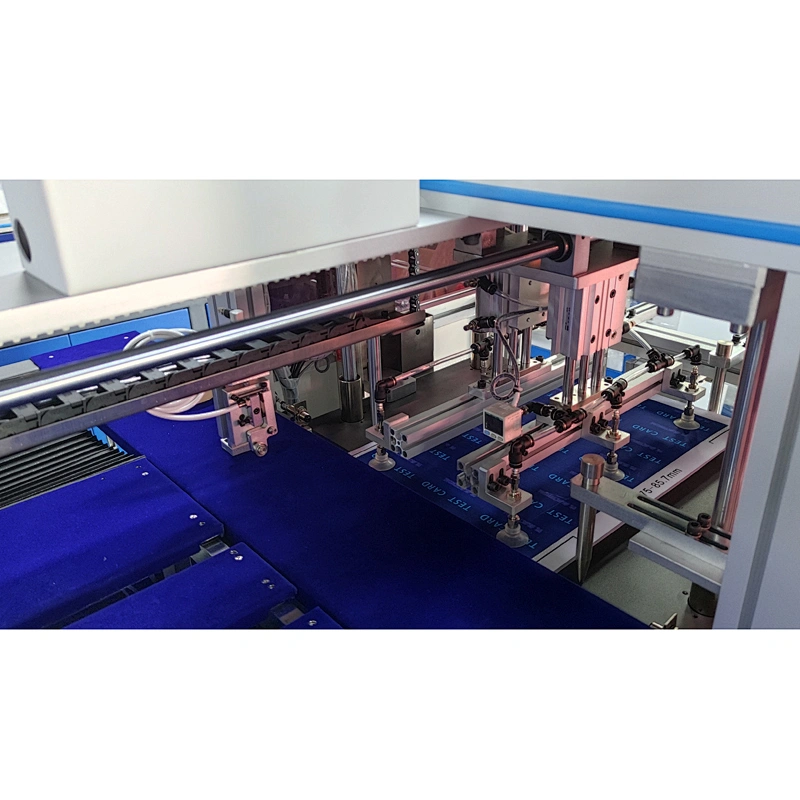

The machine is designed for punching the big laminated sheets into special shape card (specially shaped card, abnormal shape card or customized shape card) in a fully automatic way. It has the pick-placing unit for printed sheet picking and placing purpose. It adopts touch screen with friendly man-machine interface operation, and two groups of servo driven screw module in X and Y direction is used for plastic sheet feeding, and it can realizes the two-direction positioning feeding in X and Y axis with high punching precision.
The machine is designed for punching the big laminated sheets into special shape card (specially shaped card, abnormal shape card or customized shape card) in a fully automatic way. It has the pick-placing unit for printed sheet picking and placing purpose. It adopts touch screen with friendly man-machine interface operation, and two groups of servo driven screw module in X and Y direction is used for plastic sheet feeding, and it can realizes the two-direction positioning feeding in X and Y axis with high punching precision.

Note: Pls watch the machine video by click the YOUTUBE address:https://youtu.be/fLba9KvHh34
