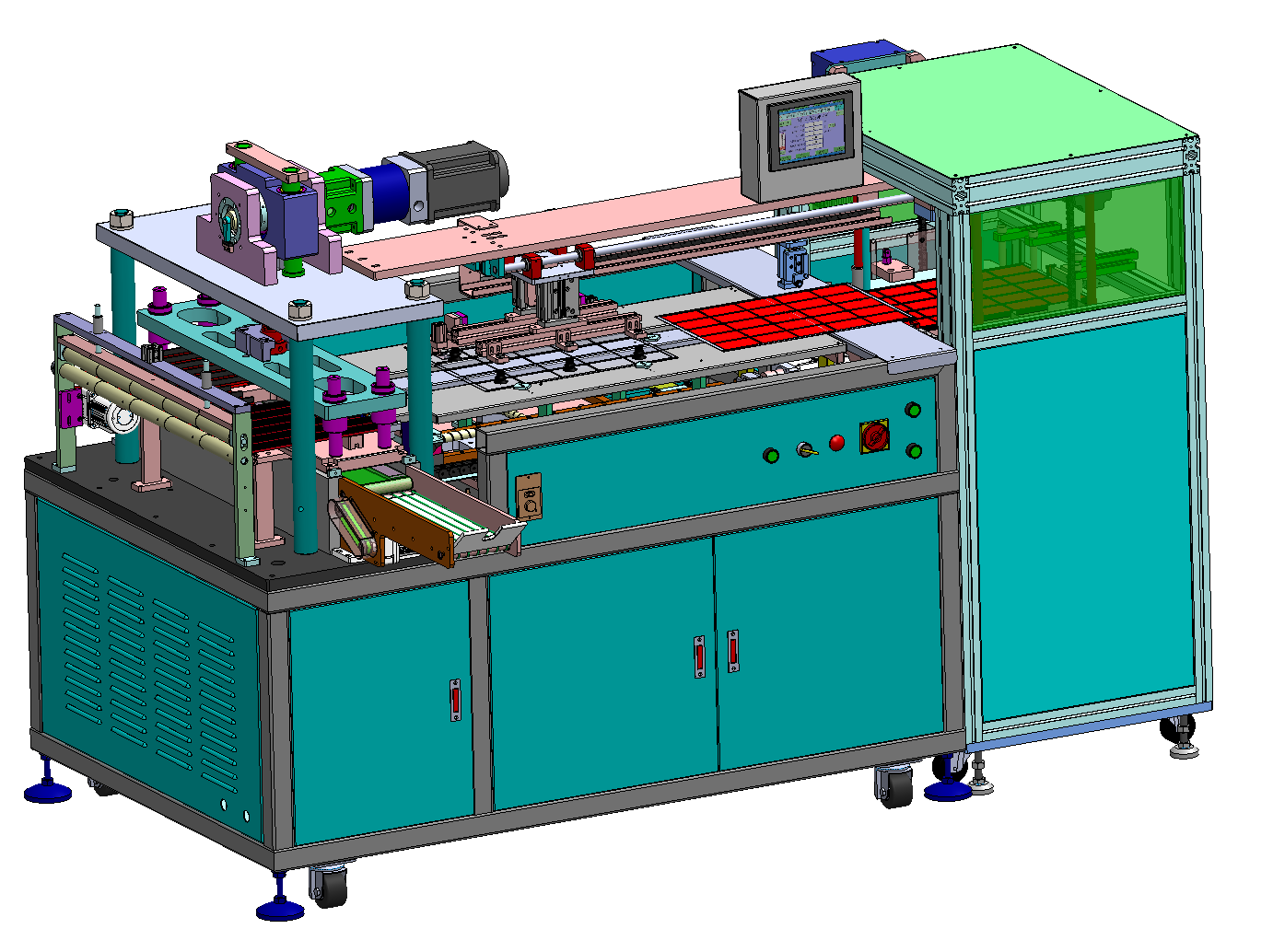

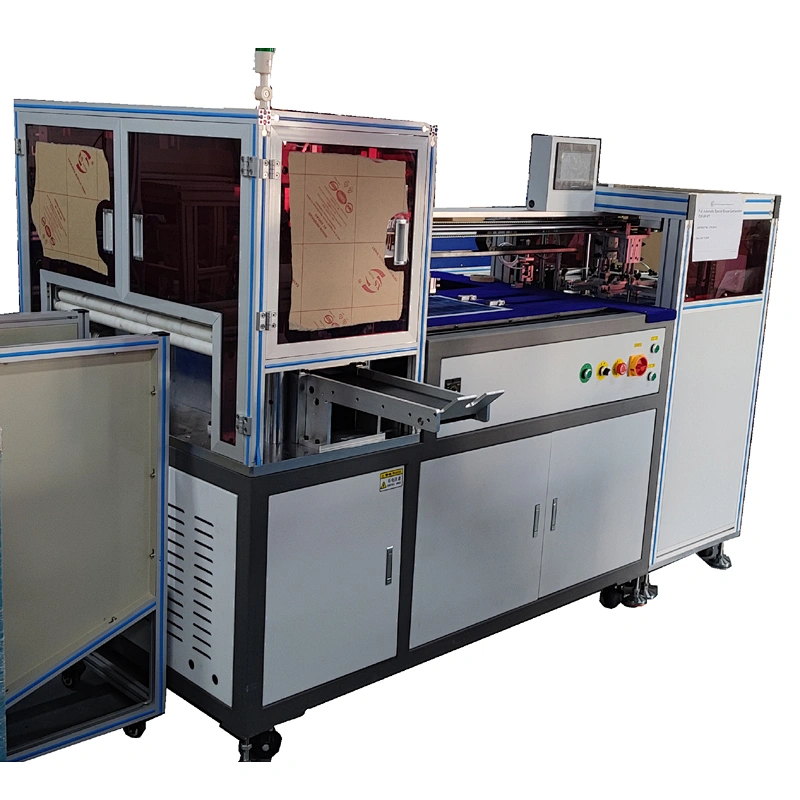

Full Automatic Special Shape Card Puncher/Customized Shape Card Puncher/Specially Shaped Card Die Cutter/Full Auto Abnormal Shape Card Die Cutter YLFP-SP-XY

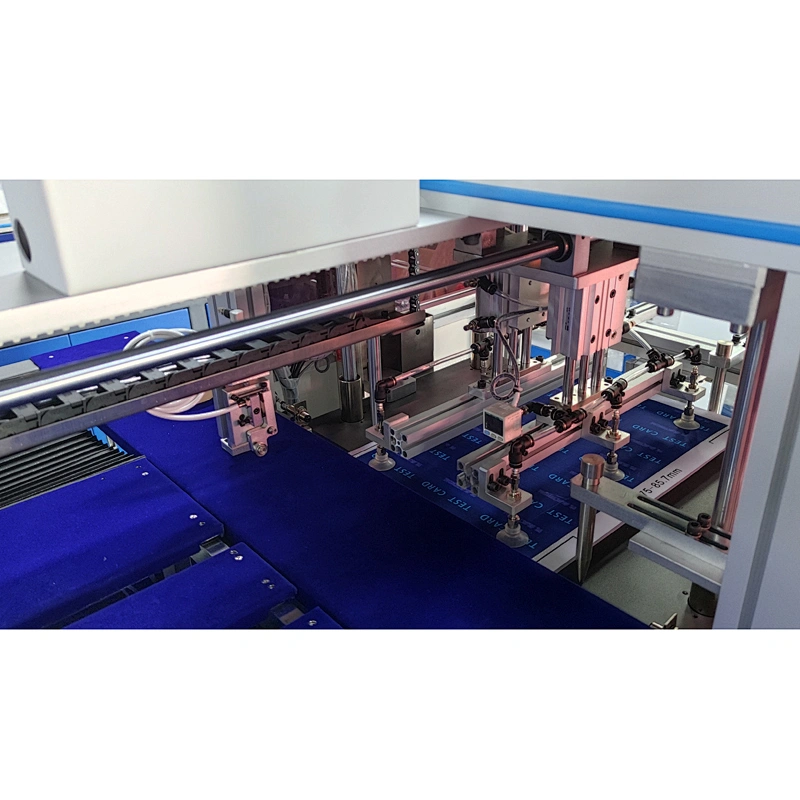

The machine is designed for punching the big laminated sheets into special shape card (specially shaped card, abnormal shape card or customized shape card) in a fully automatic way. It has the pick-placing unit for printed sheet picking and placing purpose. It adopts touch screen with friendly man-machine interface operation, and two groups of servo driven screw module in X and Y direction is used for plastic sheet feeding, and it can realizes the two-direction positioning feeding in X and Y axis with high punching precision.The card making machine -Full Automatic Special Shape Card Puncher YLFP-SP-XY. is also known as Customized Shape Card Puncher, Specially Shaped Card Die Cutter or Abnormal Shape Card Die Cutter YLFP-SP-XY.
Functional features
Its distance can be freely adjusted according to the printed sheet layout, and the material punching does not need to be cut in advance.
- The high-power servo motor applied in the machine has the advantages of low power noise, stable power output and adjustable punching speed. When it is needed to punch cards with different thickness, its performance is much better.
- 10 sets of layout position parameters can be stored in the system, which is convenient to call out and use, and it is convenient to change different punched products.
- The PLC program control can realize automatic operation and can give an timely problem alarm and operation shutdown.
Note: Pls watch the machine video by click the YOUTUBE address:
https://youtu.be/fLba9KvHh34
Main Technical Parametershttps://youtu.be/fLba9KvHh34
| Power supply | AC 380V/50 HZ | Suitable material | PVC, ABS, paper card etc. |
| Power | 5.5KW | Maximum layout | 350X600mm(Max) |
| Air supply | 6 kg/c㎡(no water) | Output | 4000~6000 pcs /hour(depends on the punch head number) |
| Air consumption | About 70L/min | Control mode | PLC program+ servo system |
| Weight | 850Kg | Number of operators | 1 person |
| Punch precise | ±0.10mm | Dimensions | L1700×W1080×H1600mm |
