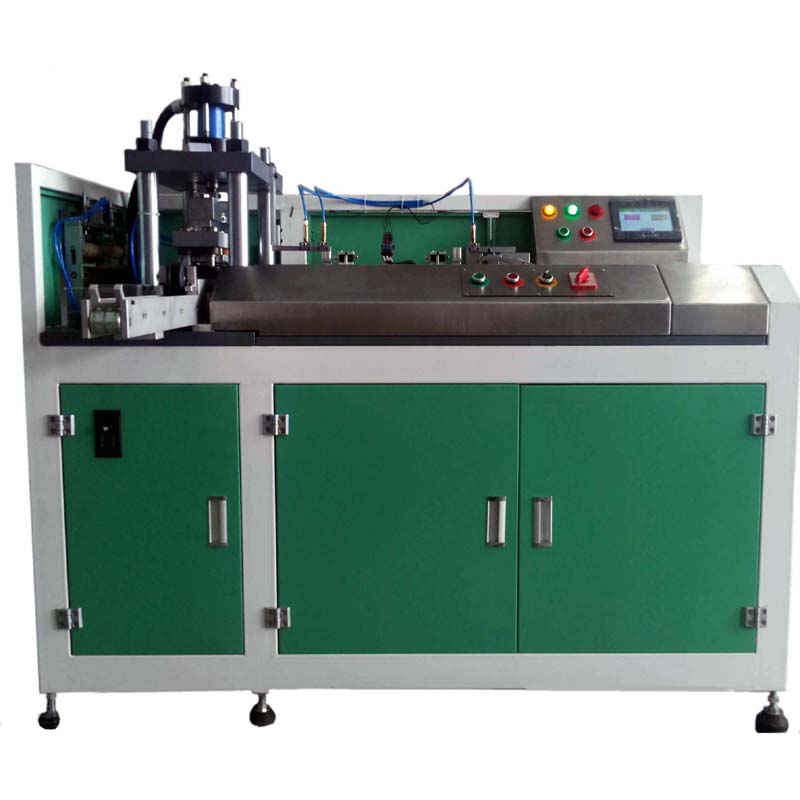

Speedy Plastic Card Puncher/Card Punching Machine/Card Die Cutter/Card Die Cutting Machine YLP-4
(Plastic card sheet puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)
2. Applicable PVC sheet layout: 4×8/4×10
3. Dimension: 1700mm×800mm×1500mm
4. Weight: 700Kg
5. Power supply: AC380V 50/60HZ
6. Power rating: 2.5 KW
7. Compressed air: 6KG/CM2
8. Hydraulic pressure: ≤30Kg/CM
Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=utDpqetlyWA
(Plastic card sheet puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)
Feature Description
It is applied for punching the laminated plastic sheets ( 4×8/4×10 layout) into ISO CR80 cards in a speedy and precise way.- It applies high-quality PLC, touch screen and servo system in order to ensure the machine stability;
- The guide screws applied can well ensure the card conveying and punching precision.
- The reliable hydraulic system is applied to ensure low noise and stable pressure control.
- The punching mould is specially designed to ensure perfect punching result and long-time service life.
Technical Parameters
1. Max. Speed: 12000-14000 cards per hour 2. Applicable PVC sheet layout: 4×8/4×10
3. Dimension: 1700mm×800mm×1500mm
4. Weight: 700Kg
5. Power supply: AC380V 50/60HZ
6. Power rating: 2.5 KW
7. Compressed air: 6KG/CM2
8. Hydraulic pressure: ≤30Kg/CM
Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=utDpqetlyWA
It is applied for punching the laminated plastic sheets ( 4×8/4×10 layout) into ISO CR80 cards in a speedy and precise way.
