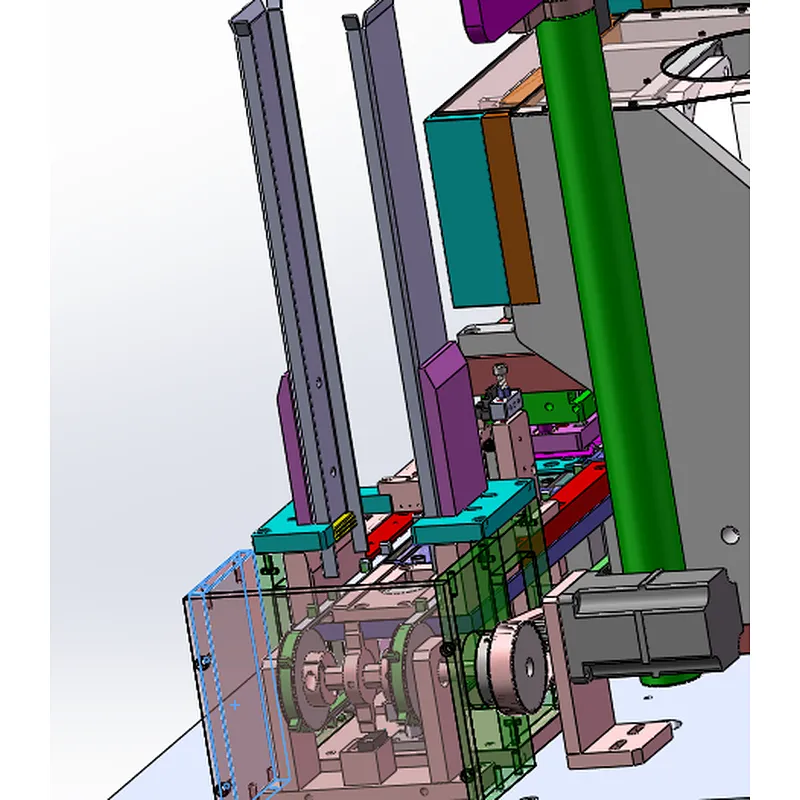

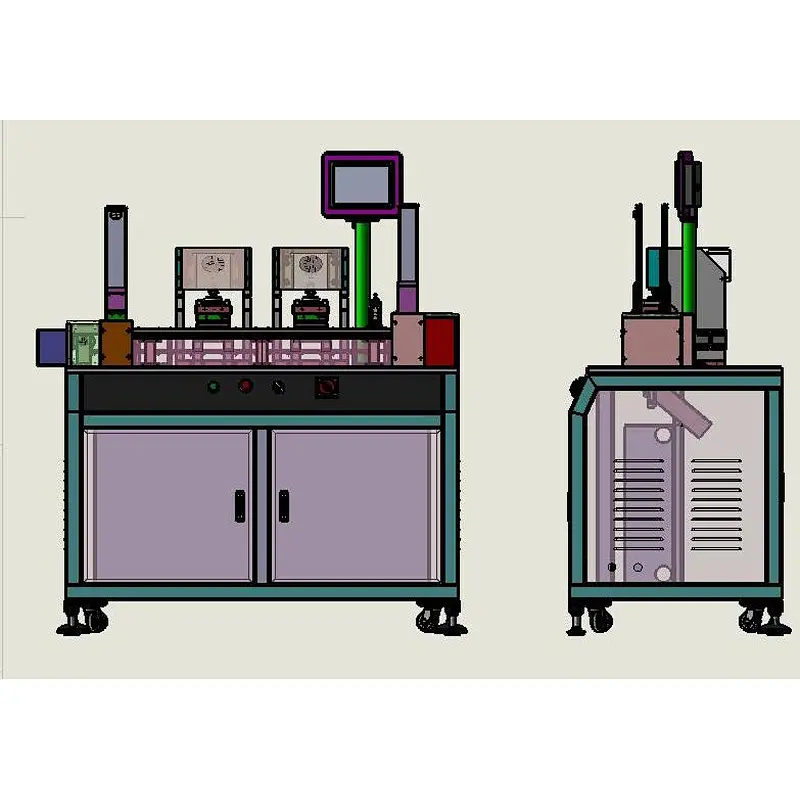

Special Shape Card Puncher YL_3TP

Special Shape Card Puncher/Customized Shape Card Puncher/Specially Shaped Card Die Cutter/Abnormal Shape Card Die Cutter YL-3TP

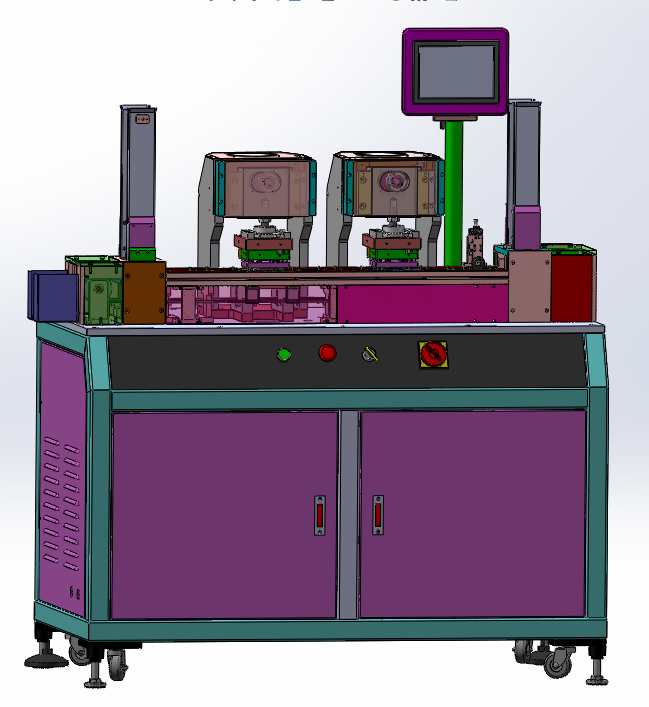

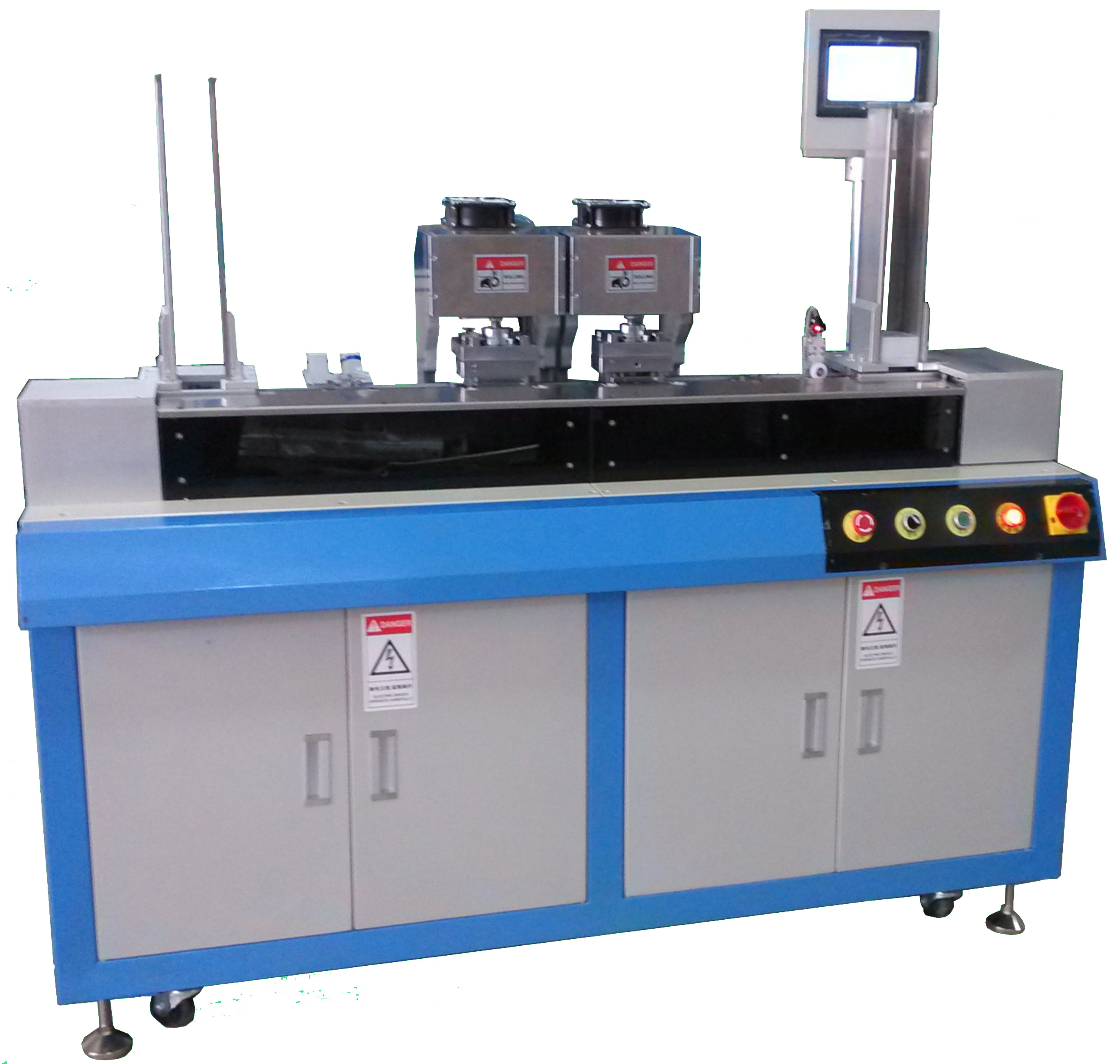

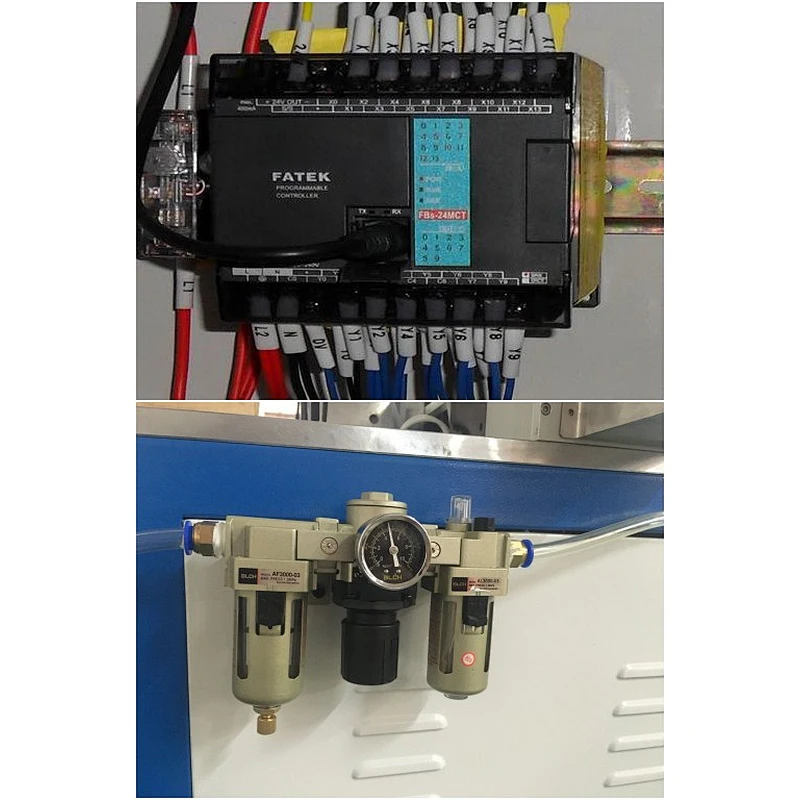

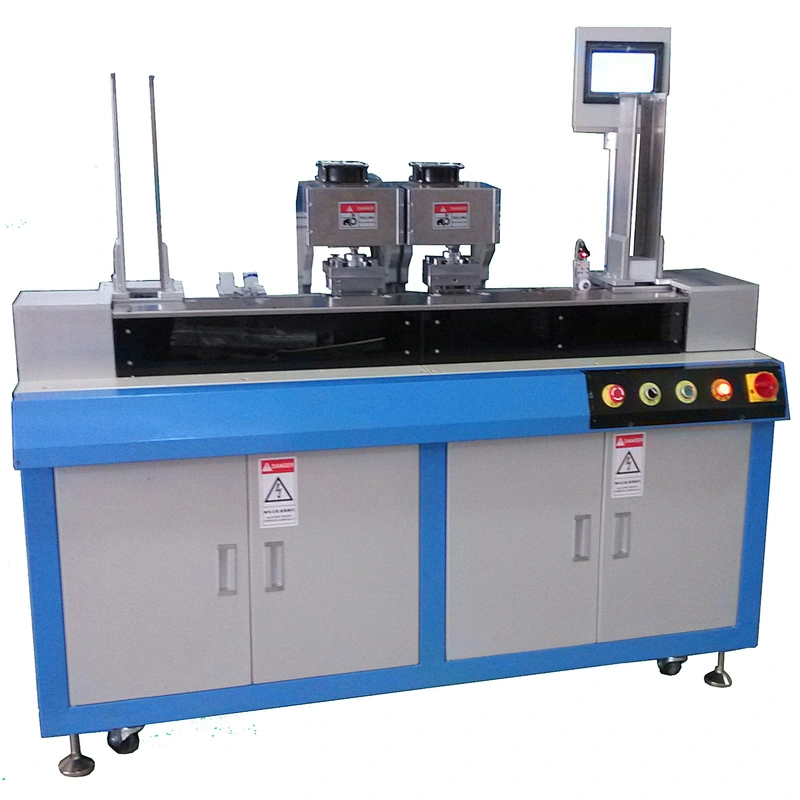

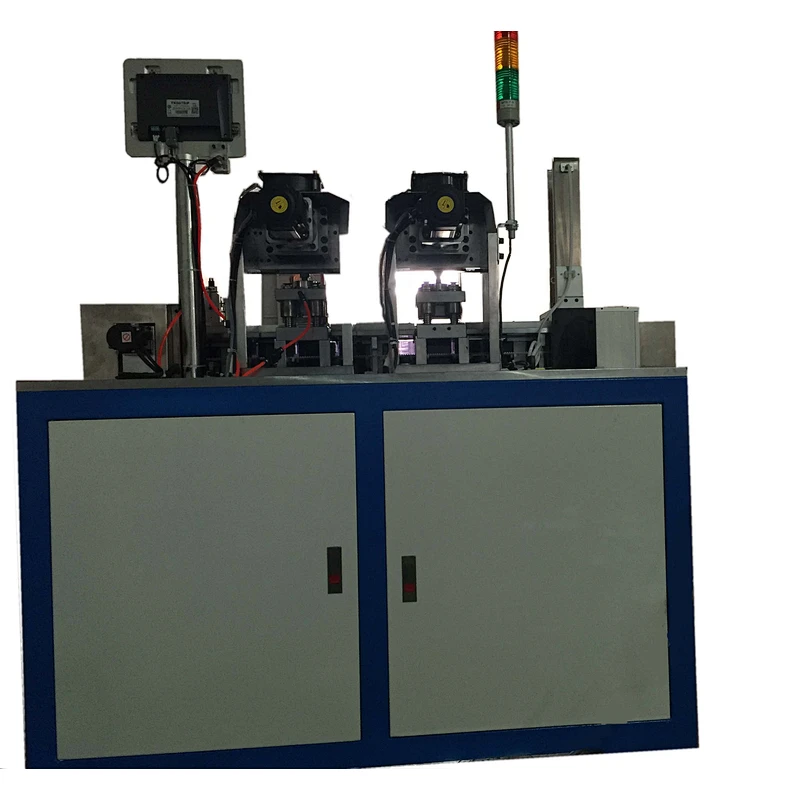

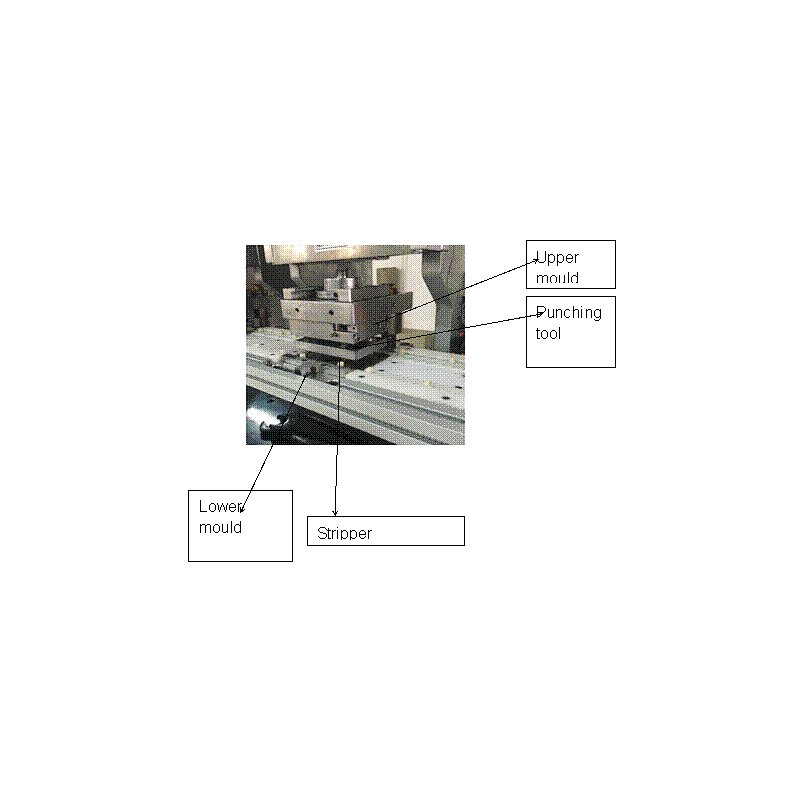

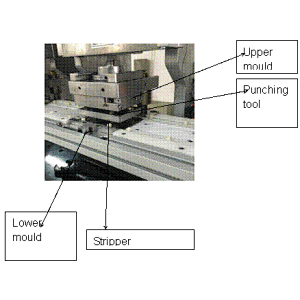

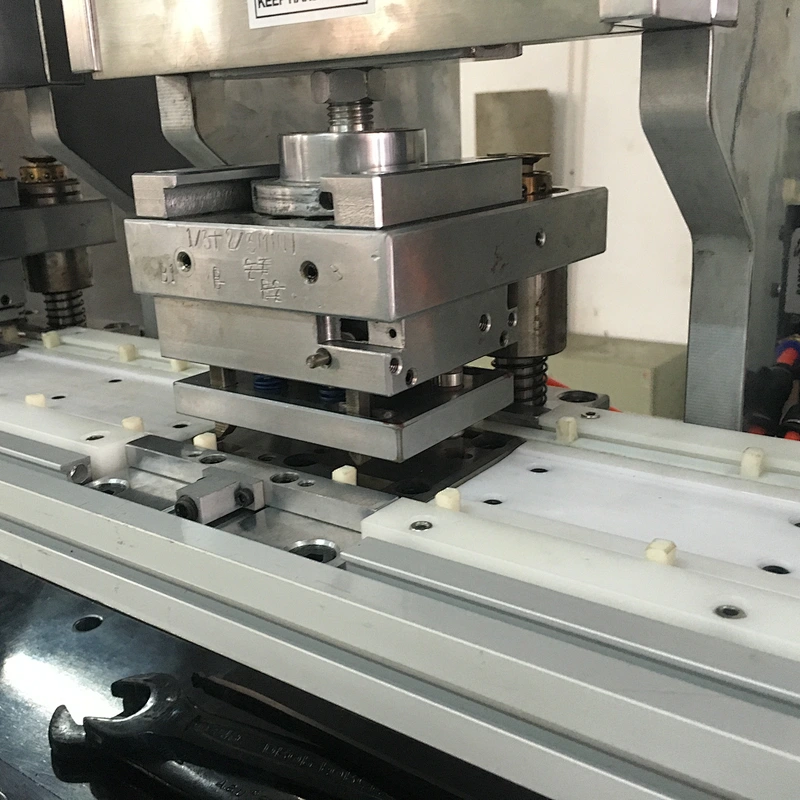

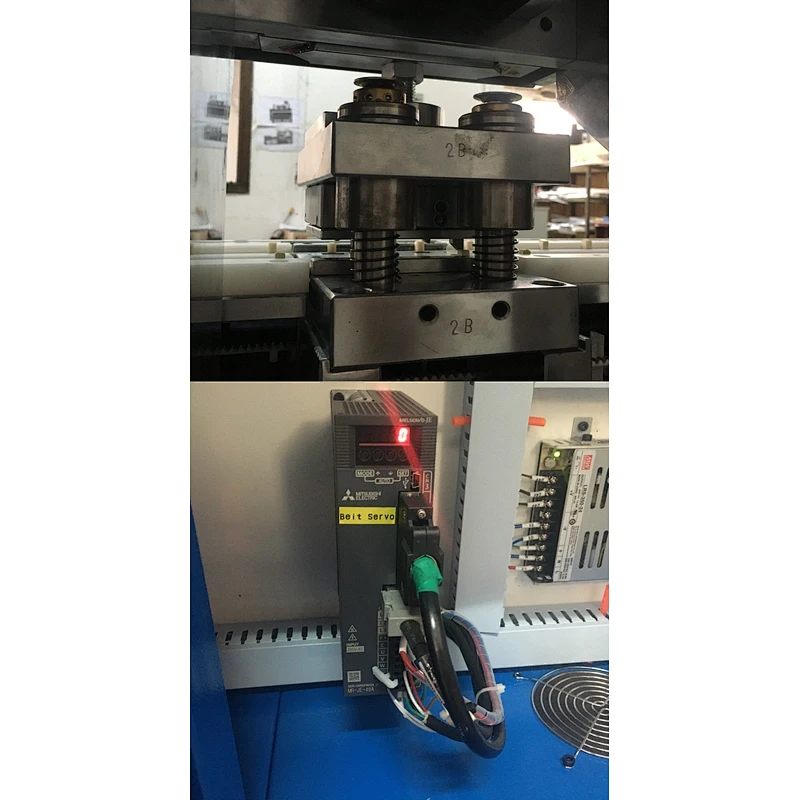

Special Shape Card Puncher YL-3TP is specially designed for punching standard CR80 plastic cards into 3-tag (1/3+1/3+1/3 tag card), 2-tag card(1/2+1/2 tag card or 1/3+2/3 tag card) or other special shape tag cards by changing different punching and stamping mould in a speedy and precise way. It is controlled by PLC and operated with touch screen. The powerful servo motor systems are applied as punch power to ensure perfects punching and stamping effect.  The punching mould applies high-quality punch mould steel with high precise punching precision.

The Special Shape Card Puncher is also known as Customized Shape Card Puncher, Specially Shaped Card Die Cutter, or Abnormal Shape Card Die Cutter.

• Card Material size: CR80 standard size, 54×85.6, thickness 0.25-0.9mm
• Air supply:  6 atm, 40L/min
• Power supply: AC380V 50Hz 3-phase 5-line
• Power: 4kW
• Productivity: 3500-5000 cards/hr.
• Dimension: L1310×W650×H1650mm
• Weight: Approx.450 kg
