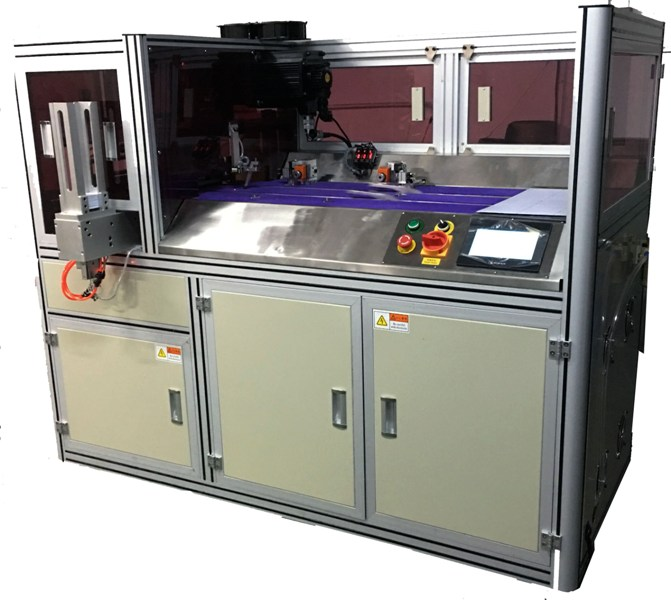

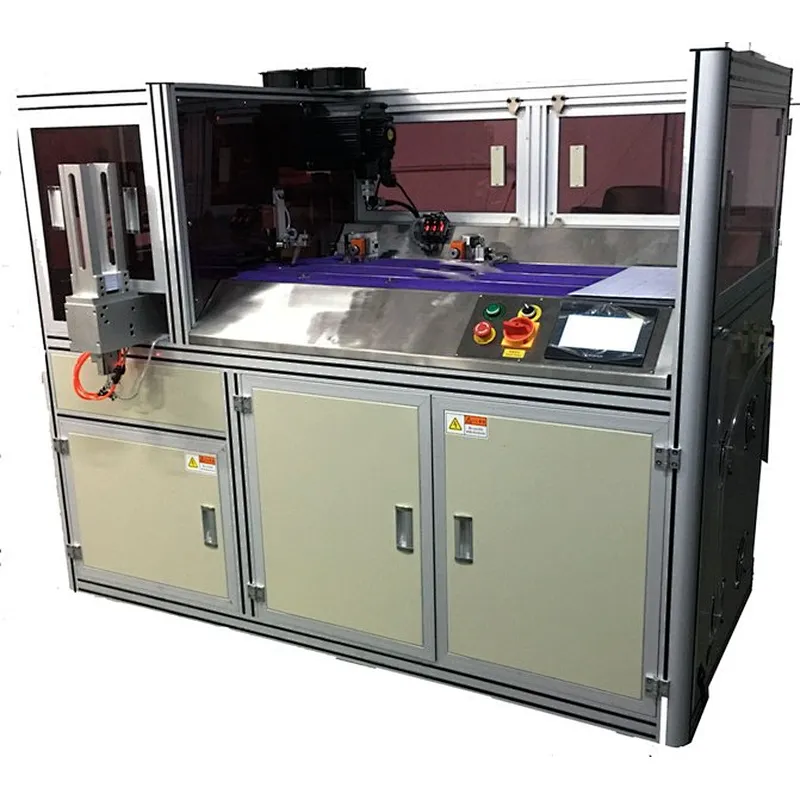

Speedy Plastic Card Puncher YLP-3

Model NO.: YLP_3
Delivery: EXW,FOB,CIF,CFR,FCA
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: 30-45 Days

Quantity:

Product Description
Application Description

Product Technical Specification

Speedy Plastic Card Puncher/Card Punching Machine/Card Die Cutter/Card Die Cutting Machine YLP-3
(Plastic card sheet puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)

Feature Description

It is applied for punching the laminated plastic sheets ( 3×7/3×8/3×10 layout) into ISO CR80 cards in a speedy and precise way.

It applies high-quality PLC, touch screen and servo system in order to ensure the machine stability;

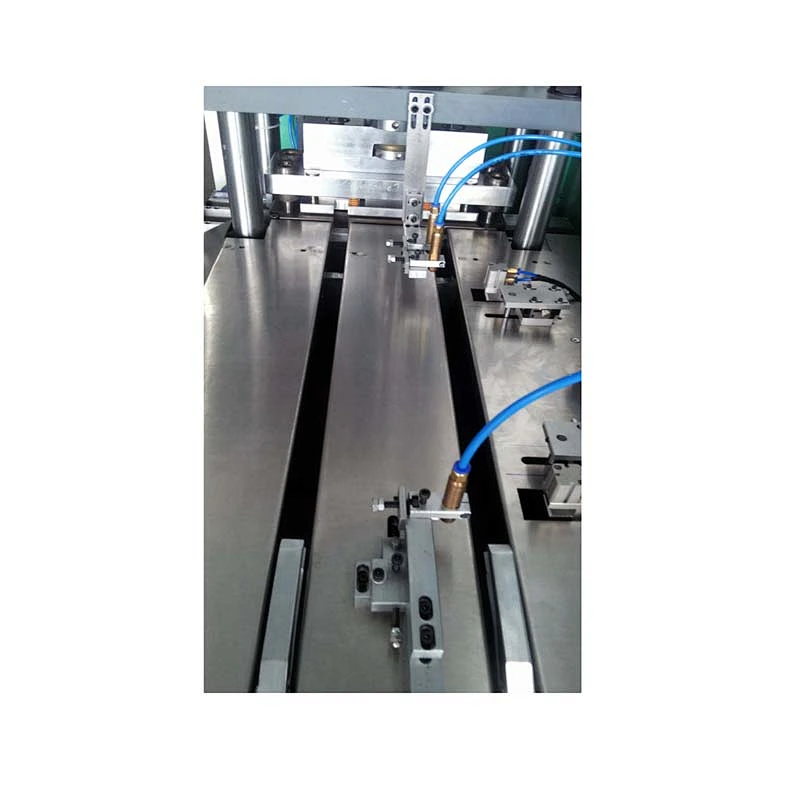

The guide screws applied can well ensure the card conveying and punching precision.
The reliable servo motor is applied as punching power to ensure more reliability and less failure ratio.

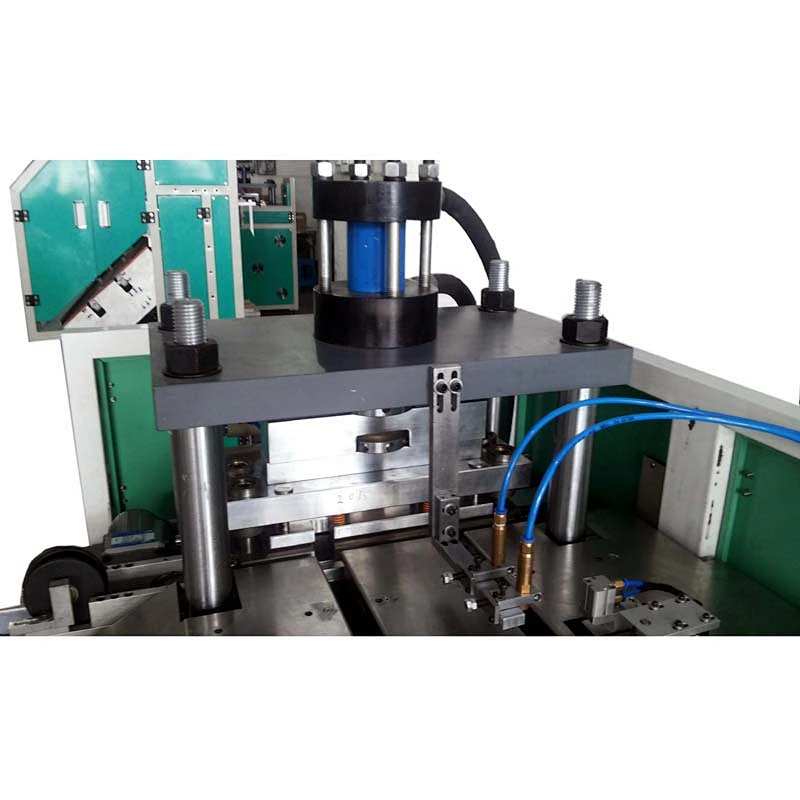

The punching mould is specially designed to ensure perfect punching result and long-time service life.

Speedy Plastic Card Puncher YLP-3 is also known or named as Card Punching Machine, Card Die Cutter or Card Die Cutting Machine YLP-3.
Technical Parameters
1.Power Supply: AC 380V/50 HZ
2.Material: Various plastic sheets including PVC, ABS, PETG, etc.
3.Total Power: 3.5KW
4.Material Size: 3X8, 4X8 or 5X8
5.Air Source: 6 kg/cm2(Dry)
6.Speed: 9000~12000 pcs /hr
7.Air Consumption: 70L/min
8.Control Method: PLC programming+ servo system
9.Weight: around 800Kg
10.Operator: 1 person
11.Precision: ±0.10mm
12.Dimension: L1700×W830×H1520mm

FREE SPARE PART LIST
SN	Part name	Part model	Qty.
1	Electromagnetic Valve	4V110	1pc
2	Relay14PIN DC24V	MY4N-J DC 24V	3pcs
3	Fuse	10A	5pcs
4	Fuse holder	RT18-32	1pc
5	synchronous belt	10*200XL	1pc
6	screw driver		1 set
7	Open spanner		1 set
